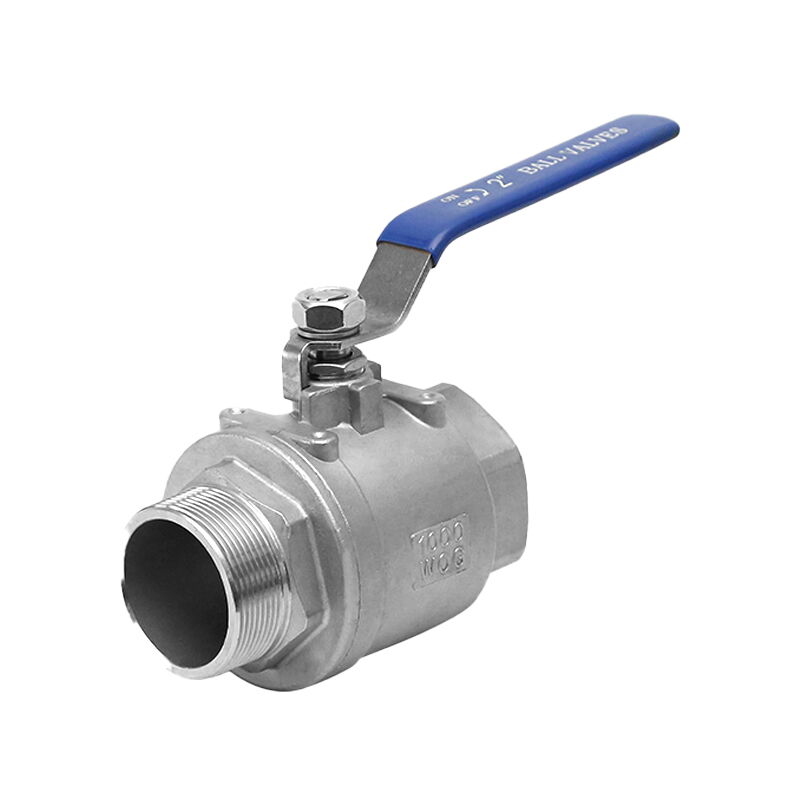

2-Piece Threaded Ball Valve, SS 304, 2 Inch, 1000 WOG, Lever

Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

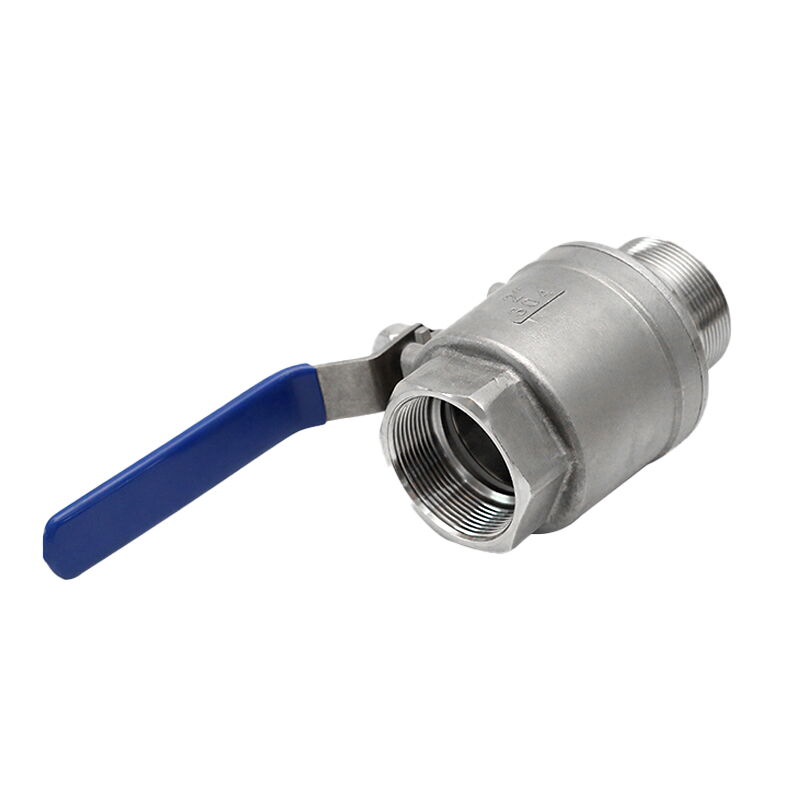

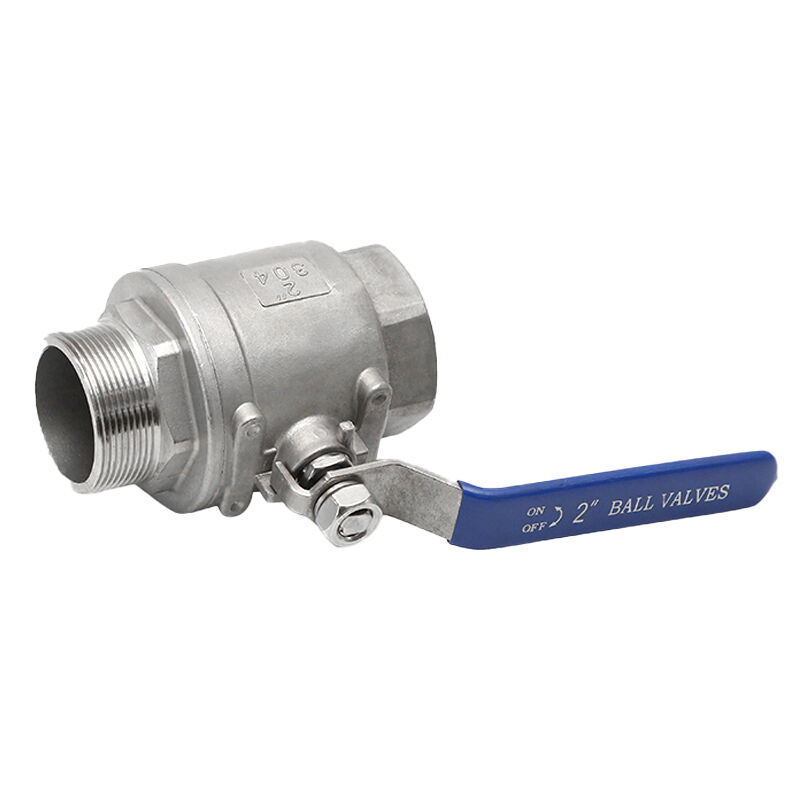

Our 2-Piece Threaded Ball Valve is manufactured to meet ASME B16.34 standards, ensuring high quality and reliability. The valve features a stainless steel SS 304 body, providing excellent corrosion resistance and durability. Available in a 2-inch size, it is rated for 1000 WOG (Water, Oil, Gas) pressure, making it suitable for a wide range of applications. The valve is lever-operated for easy and efficient control. It comes with both internal and external threaded ends, facilitating versatile and secure connections.

Model No.: MV-20250627-LTMSBV-05
Hits: 21
Categories: Low Torque Metal Seated Ball Valve
Tags: 2 Piece Ball Valve, 1000 WOG Ball Valve, 2 Inch Ball Valve

Request a quote

Detail Information

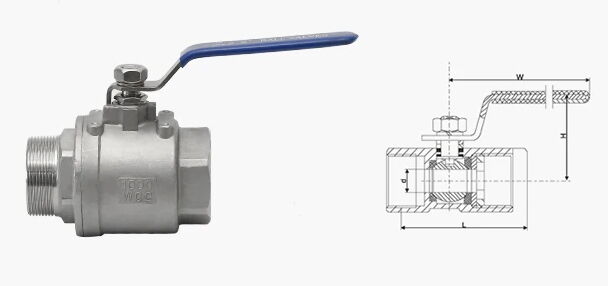

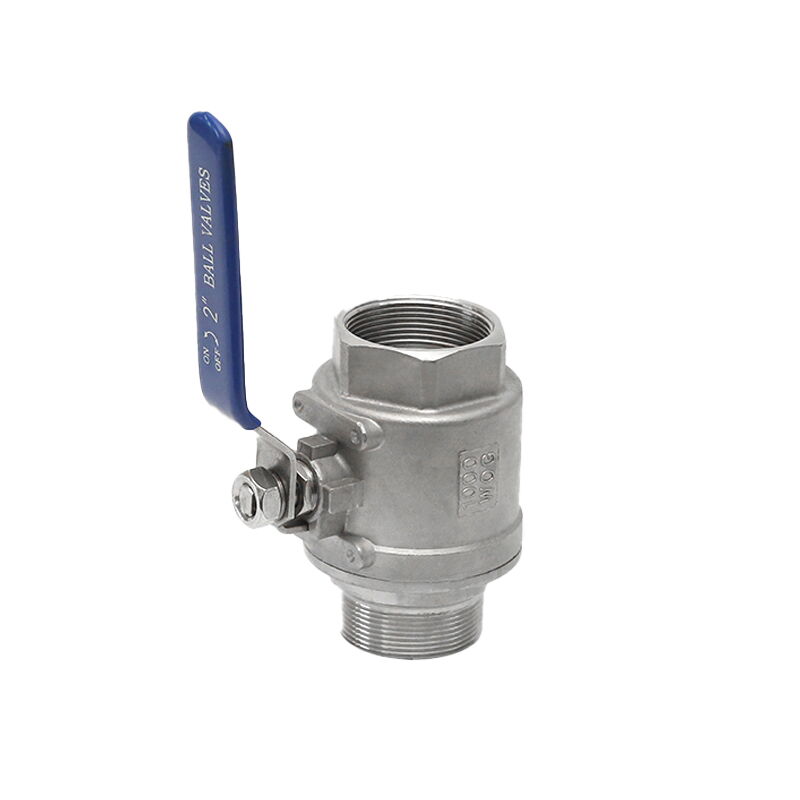

Product Name: 2-Piece Threaded Ball Valve, Internal & External Threaded
Design Standard: ASME B16.34
Body Material: Stainless Steel SS 304
Size: 2 Inch, DN50
Pressure: 1000 WOG
Operation: Lever
End Connection: Threaded
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598

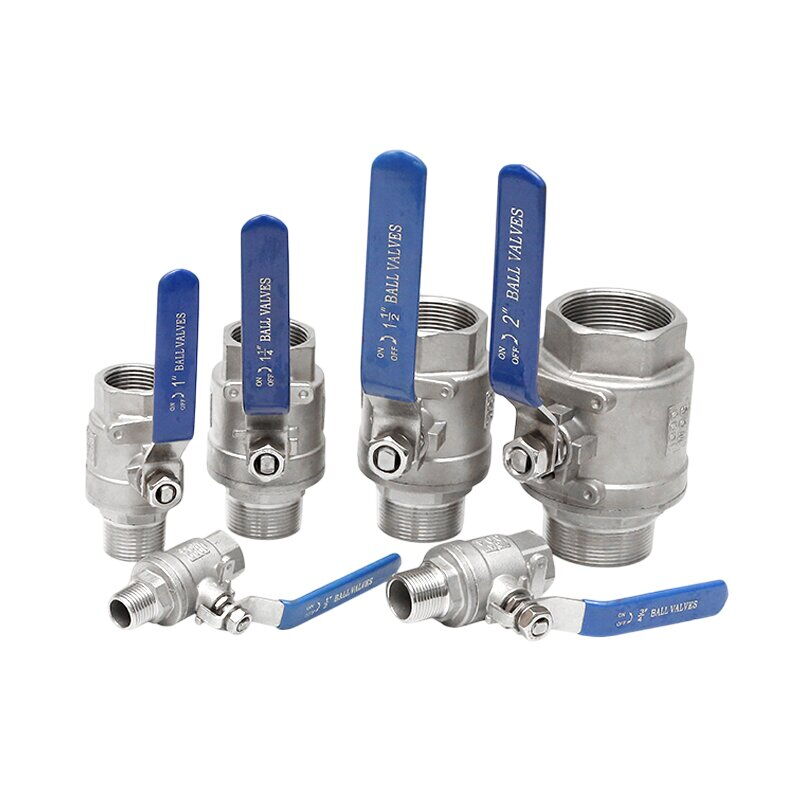

Product Range

Body Material: ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M
Size Range: 1/8-4 Inch, (DN6-DN100)
Working Pressure: 0.6-0.8 MPa, PN6, PN8
End Connection: Threaded (BSPT, BSP, NPT, DIN 2999)
Applications: chemical engineering, petroleum, energy, water treatment, food and other fields.

Part Name	Material
Valve Body	ASTM A216 WCB	ASTM A351 CF8	ASTM A351 CF8M
Valve Cover	ASTM A351 WCB	ASTM A351 CF8	ASTM A351 CF8M
Valve Seat	PTFE	RPTFE	PTFE
Ball	SS 304	SS 304	SS 316
Gasket	PTFE	PTFE	PTFE
Stem Seal	PTFE	PTFE	PTFE
Valve Stem	SS 304	SS 304	SS 316
Anti-static Device	SS 304	SS 304	SS 316
Stem Packing	PTFE	PTFE	PTFE
Packing Gland	SS 202	SS 202	SS 202
Elastic Washer	SS 202	SS 202	SS 202
Handle	SS 202	SS 202	SS 202
