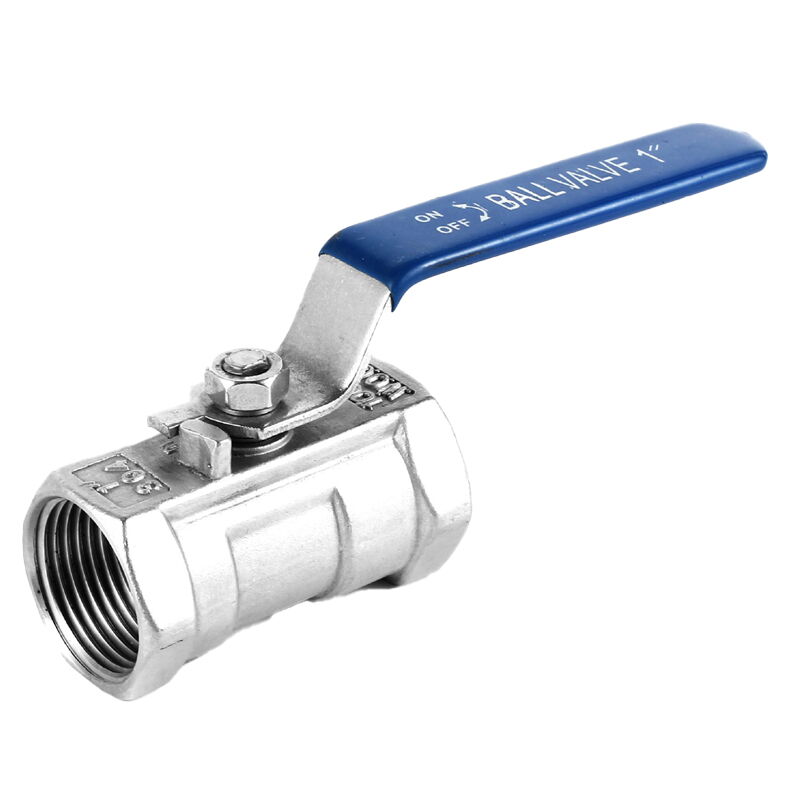

One Piece Ball Valve, ASME B16.34, A351 CF8M, 1 IN, 1000 WOG
(API 624 Additional High Temperature Version)
Key Specifications / Features

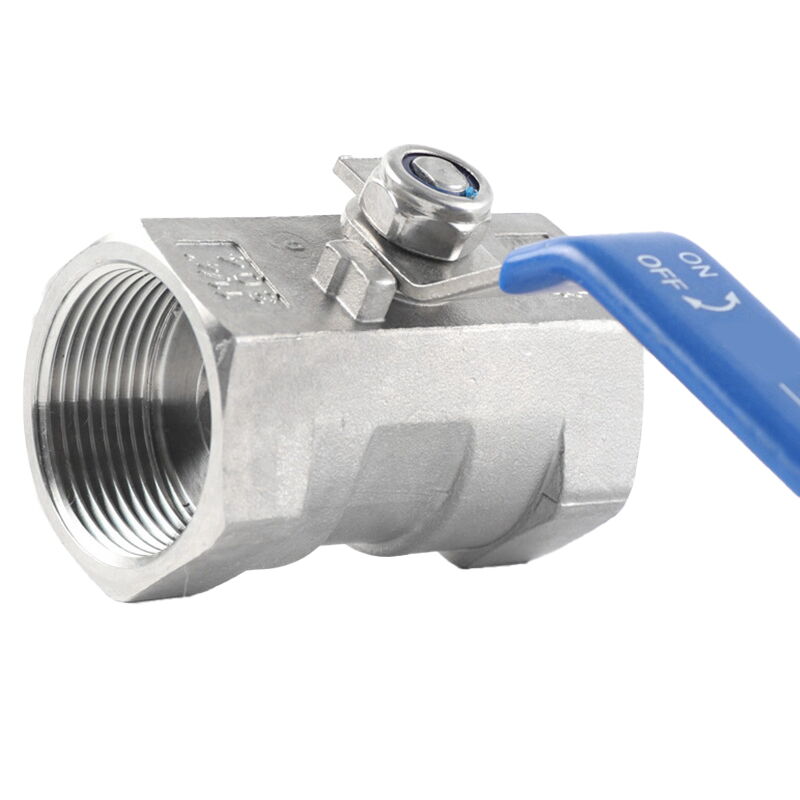

Our Stainless Steel One Piece Ball Valve adheres to ASME B16.34 standards and features an ASTM A351 CF8M body with a stainless steel SS 304 ball. This 1-inch valve is rated for 1000 WOG (Water, Oil, Gas) pressure, ensuring reliable performance in various industrial applications. It is lever-operated and comes with threaded ends for easy installation and maintenance.
- Model No.: MV-20250627-LTMSBV-04
- Hits: 22
- Categories: Low Torque Metal Seated Ball Valve
- Tags: ASTM A351 CF8M Ball Valve, One Piece Ball Valve, 1000 WOG Ball Valve
Detail Information
Product Name: One Piece Ball Valve
Design Standard: ASME B16.34
Body Material: ASTM A351 CF8M

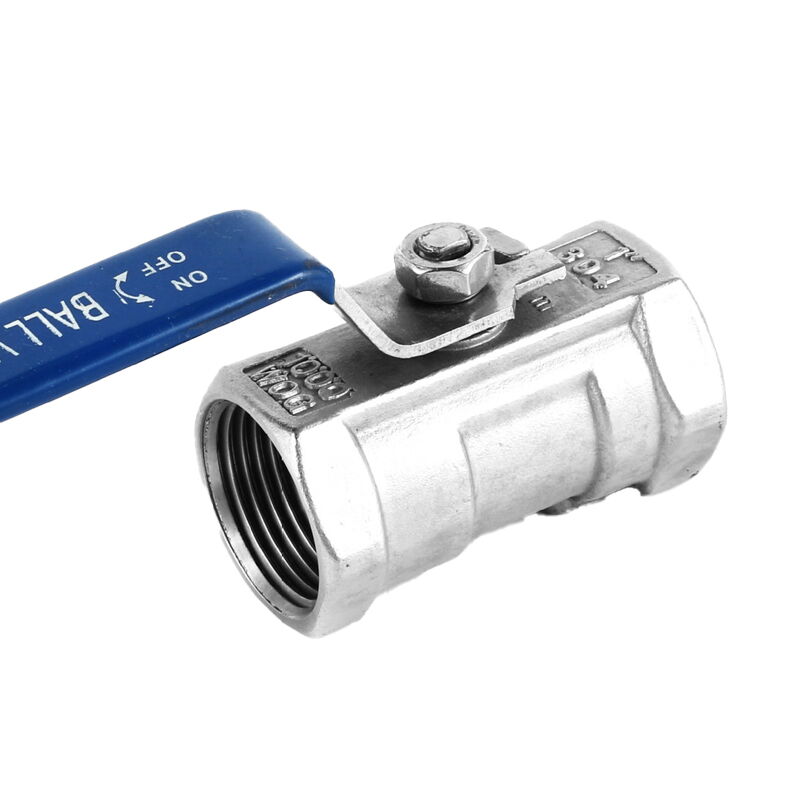

Ball Material: Stainless Steel SS 304
Size: 1 Inch, DN25
Pressure: 1000 WOG
Operation: Lever
End Connection: Threaded
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598

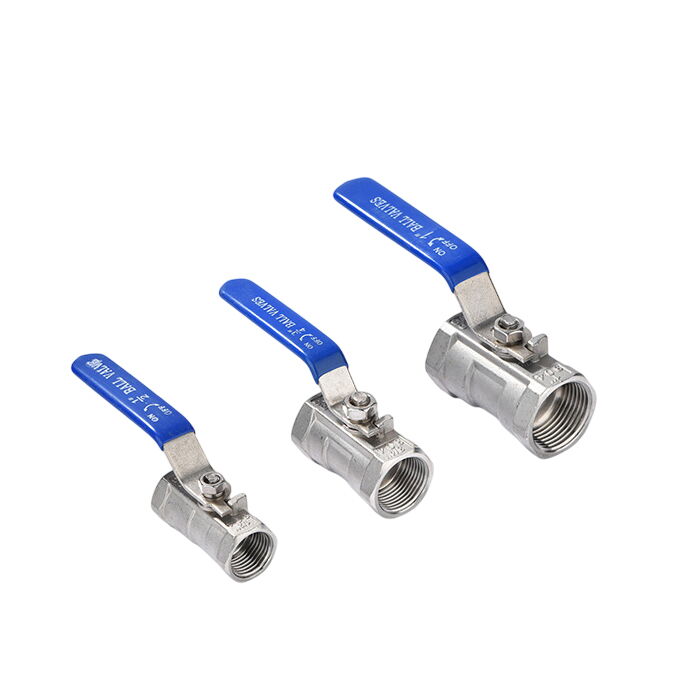

Product Range
Material: Stainless Steel SS 201, SS 304
Nominal Pressure: 1.6-6.4 MPa, PN16-PN64, Class 150-400 LB
Connection Method: Internal Thread
Suitable Medium: Water, Oil, Gas, Some Corrosive Liquids
Operating Temperature Range: -20 °C to 232 °C

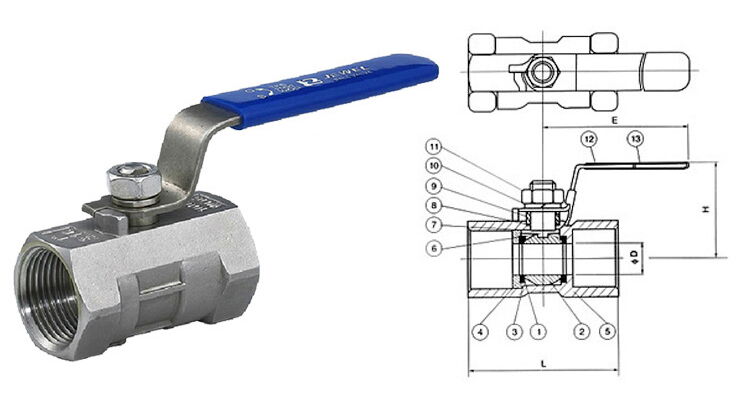

No. | Part Name | Material |
1 | Seal Ring | PTFE (Teflon) |
2 | Ball | Stainless Steel SS 304 |
3 | Gasket | PTFE (Teflon) |
4 | Valve Cover | ASTM A351 CF8M |
5 | Valve Body | ASTM A351 CF8M |
6 | Valve Stem | Stainless Steel SS 304 |
7 | Thrust Washer | PTFE (Teflon) |
8 | Packing | PTFE (Teflon) |
9 | Packing Nut | Stainless Steel SS 304 |
10 | Washer | Stainless Steel SS 304 |
11 | Stem Nut | Stainless Steel SS 201 |
12 | Handle Cover | Plastic |
13 | Handle | Stainless Steel SS 201 |
