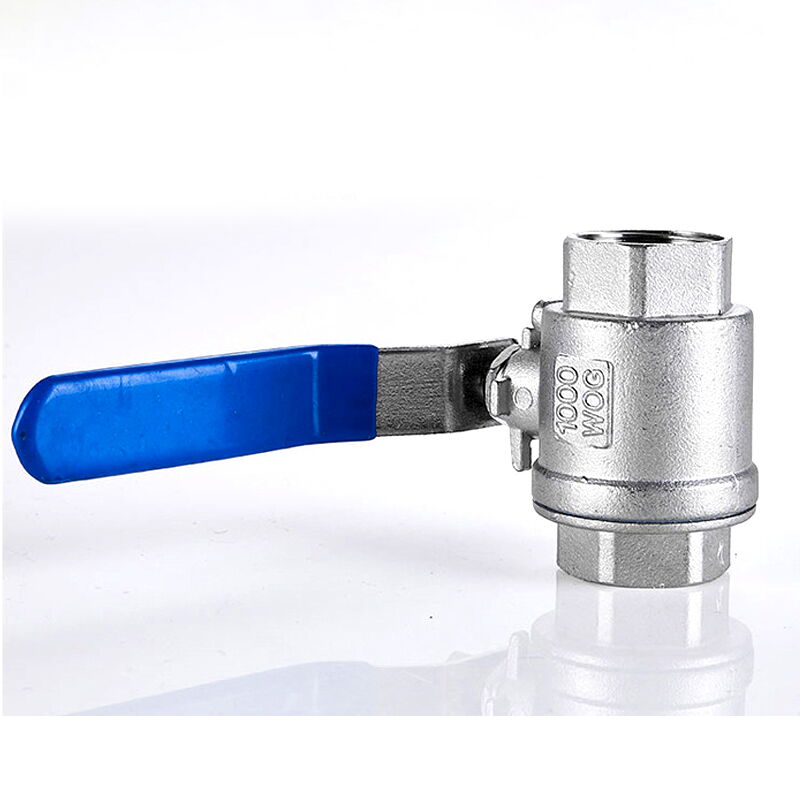

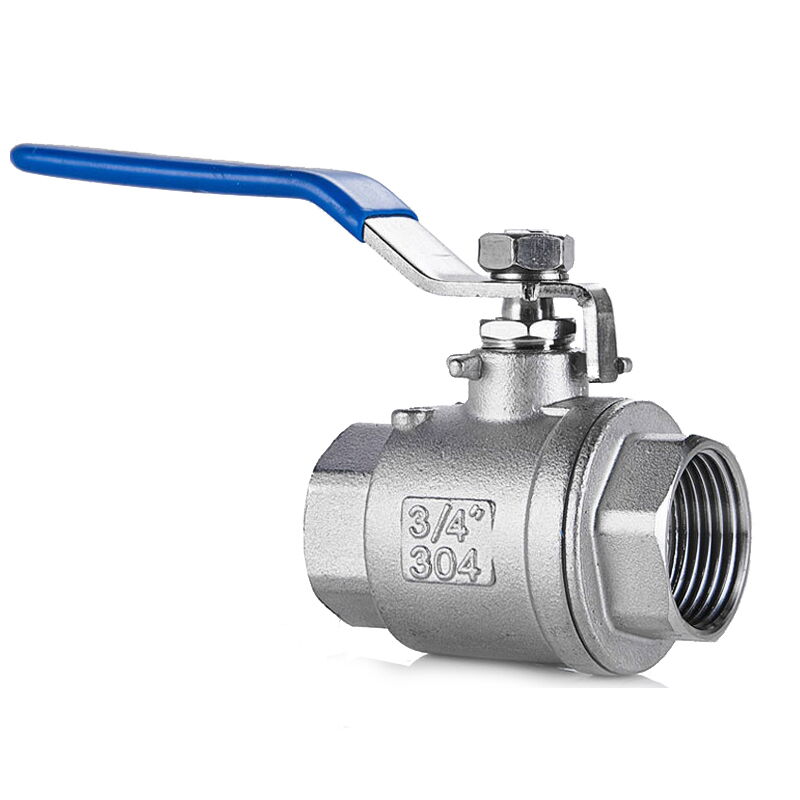

Stainless Steel 2-Piece Ball Valve, CF8M, 3/4 Inch, 1000 WOG
(API 624 Additional High Temperature Version)
Key Specifications / Features
Our Stainless Steel 2-Piece Ball Valve Plant produces high-quality ball valves that adhere to ASME B16.34 standards. These valves feature an ASTM A351 CF8M body and a stainless steel SS 304 ball, ensuring durability and corrosion resistance. Available in a 3/4 inch (DN20) size with a 1000 WOG pressure rating, they are designed for reliable performance. The valves are lever-operated and come with threaded ends for easy installation and maintenance.
- Model No.: MV-20250627-LTMSBV-01
- Hits: 42
- Categories: Low Torque Metal Seated Ball Valve
- Tags: 1000 WOG Ball Valve, ASTM A351 CF8M Ball Valve, 2 Piece Ball Valve
Detail Information
Product Name: Stainless Steel Two-Piece Ball Valve
Design Standard: ASME B16.34
Body Material: ASTM A351 CF8M

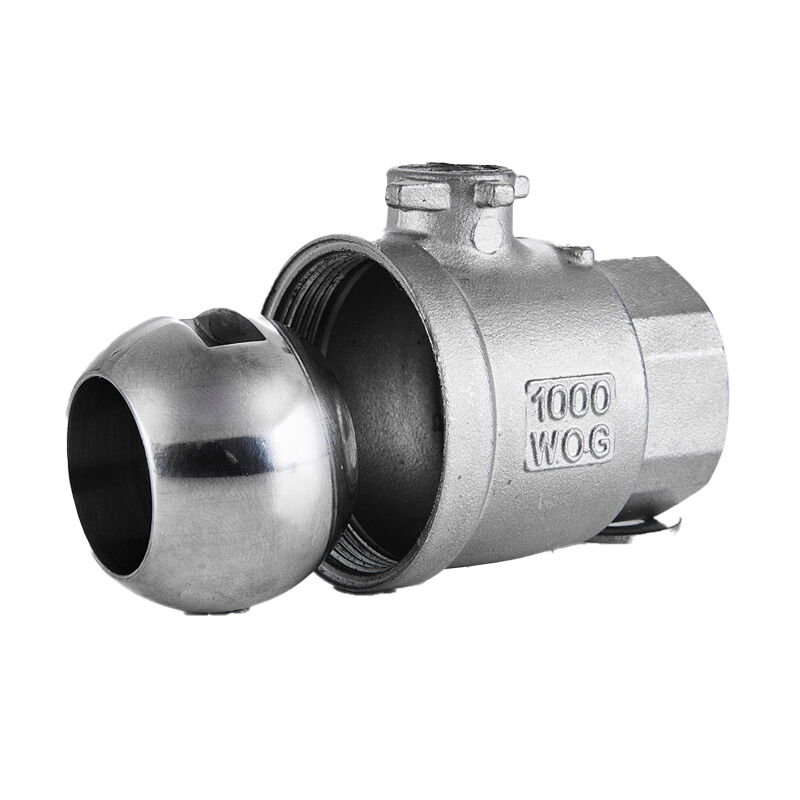

Ball Material: Stainless Steel SS 304
Size: 3/4 Inch, DN20
Pressure: 1000 WOG

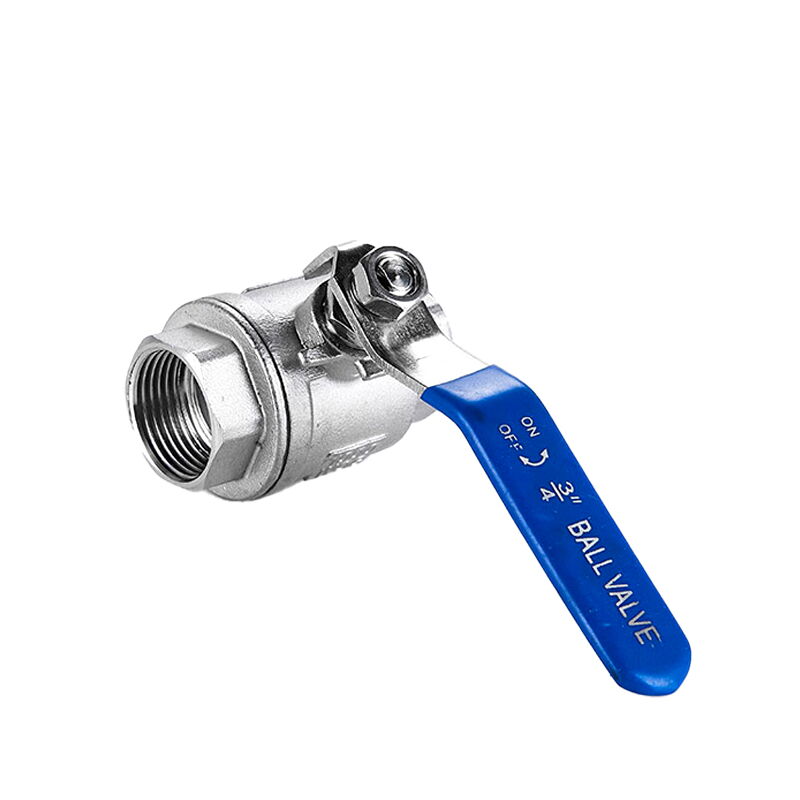

Operation: Lever

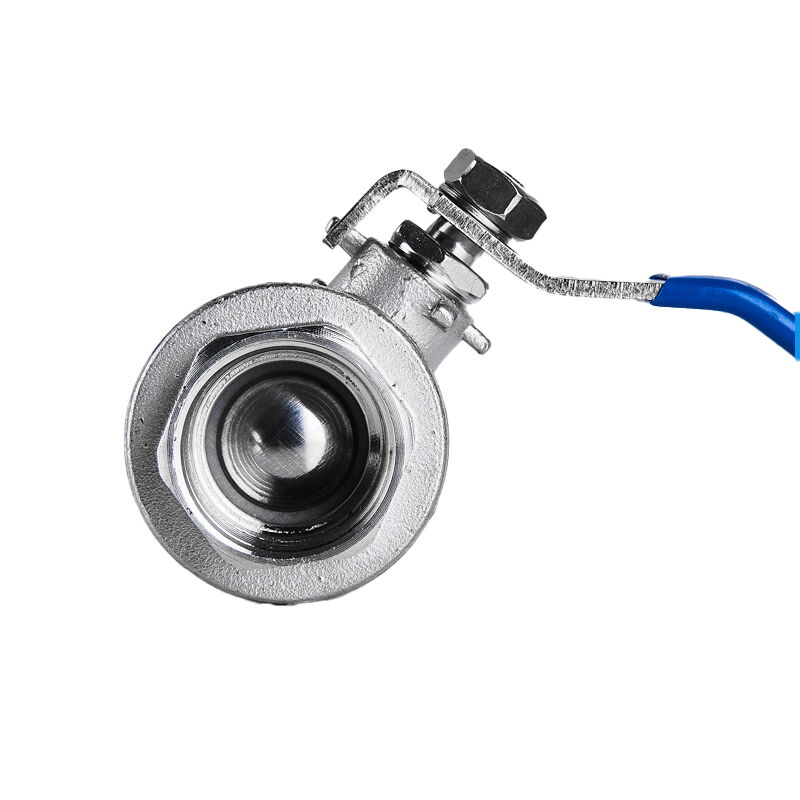

End Connection: Threaded
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Rated Pressure: 1.0 MPa, PN10, Class 150 LB
Applicable Temperature Range: 0 to 100°C
Suitable for: Water, oil, gas (and some corrosive liquids)
Thread Types: G, NPT, BSPT, BSP, D259/2999

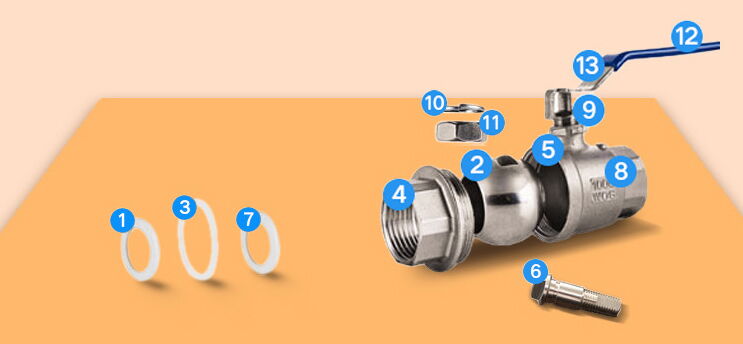

Main Component Material Table
No. | Component Name | Material |
1 | Sealing Ring | PTFE |
2 | Ball | Stainless Steel 304 |
3 | Sealing Gasket | PTFE |
4 | Valve Cover | ASTM A351 CF8M |
5 | Valve Body | ASTM A351 CF8M |
6 | Valve Stem | Stainless Steel 304 |
7 | Stop Ring | PTFE |
8 | Packing | PTFE |
9 | Packing Nut for Cover | Stainless Steel 304 |
10 | Washer | Stainless Steel 304 |
11 | Valve Stem Nut | Stainless Steel 201 |
12 | Handle Cover | Plastic |
13 | Handle | Stainless Steel 201 |
