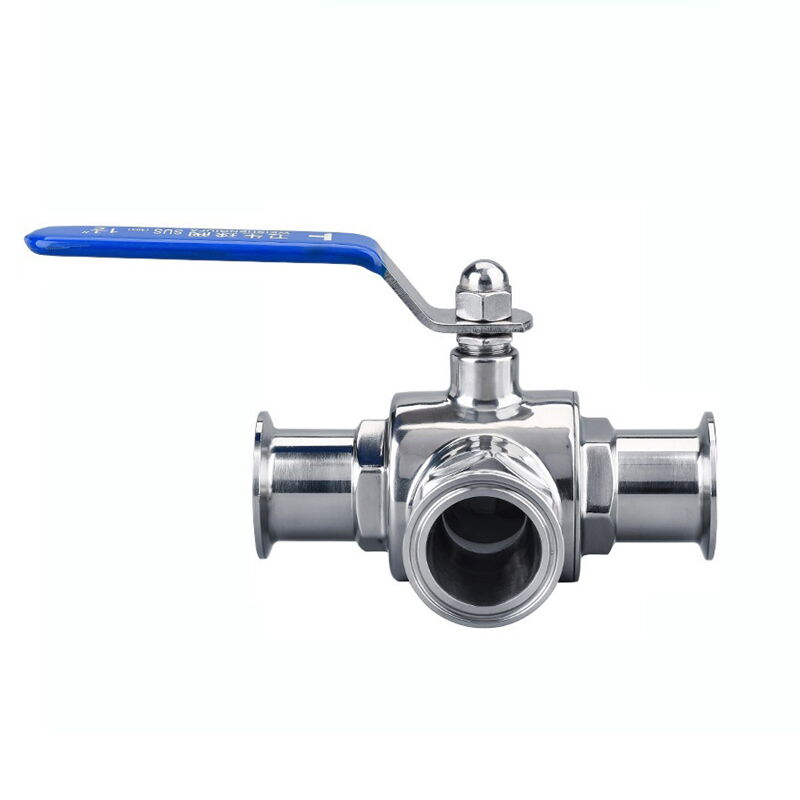

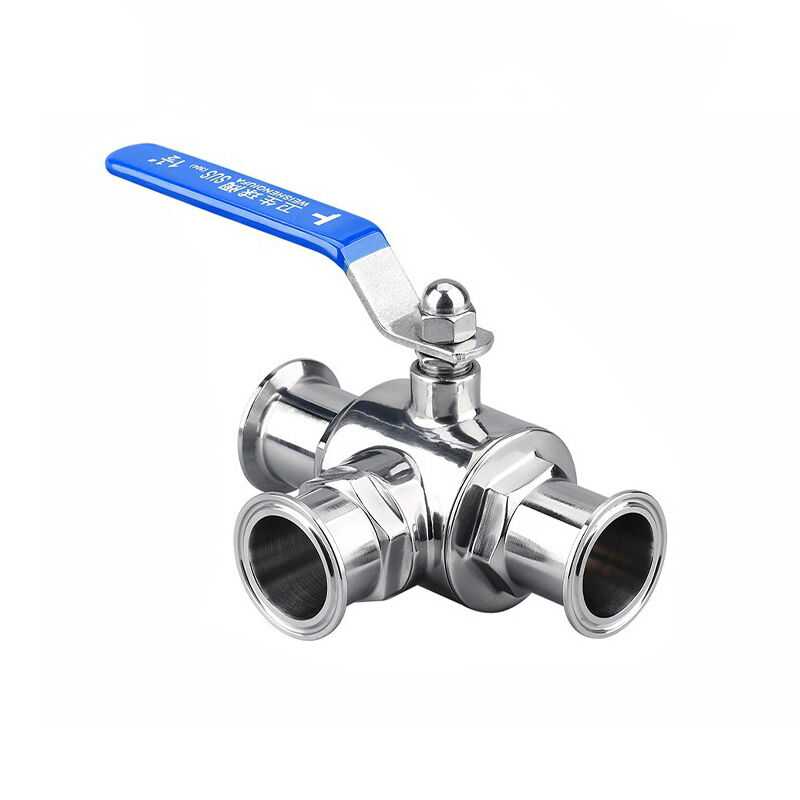

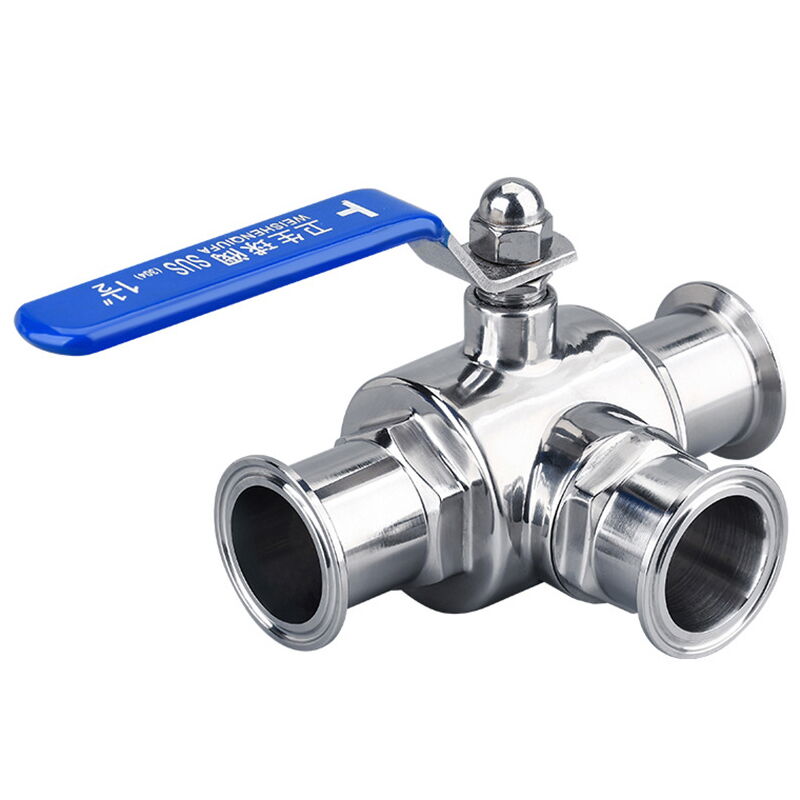

Quick-assembly 3-way Ball Valve, SUS 304/316, DN19-DN102

Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

The Quick-assembly 3-way Ball Valve Plant specializes in producing high-quality sanitary ball valves designed for precision flow control in various applications. These valves are available in both L-type and T-type configurations, offering versatile flow control options. Constructed from durable stainless steel materials (SUS 304 and SUS 316), they provide excellent corrosion resistance and reliability. The valves come in a range of sizes from DN19 to DN102, and can be customized to meet specific pressure requirements.

Model No.: MV-20250626-TMSBV-03
Hits: 19
Categories: Low Torque Metal Seated Ball Valve
Tags: 3-Way Ball Valve, Sanitary Ball Valve, Quick-assembly Ball Valve

Request a quote

Detail Information

Product Name: Quick-assembly Three-way Ball Valve, Sanitary Ball Valve
Type: L Type, T Type Ball Valve
Material: SUS 304, SUS 316
Size Range: DN19-DN102
Pressure Rang: Customized
Connection Type: Quick-connect
Operation: Lever
Manufacturing Process: CNC Precision Machining/Polishing
Operating Temperature: Normal Pressure/Room Temperature
Applicable Media: Water, Gas, Oil, Weakly Corrosive Media, etc.
Features: The material used is high-quality reinforced steel. It has stronger performance than ordinary materials and a longer service life than similar products.

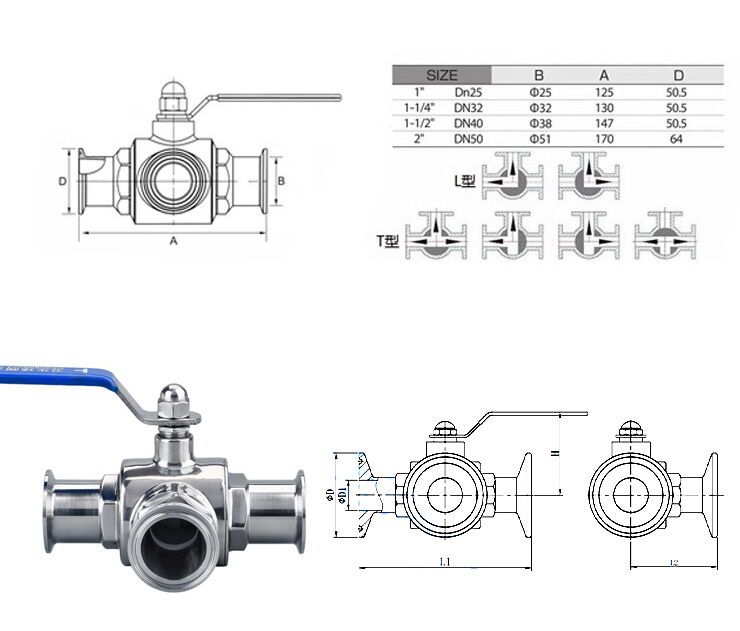

Quick-assembly 3-way Ball Valve Dimensions

SIZE	Clamp D	Inner D1	Length L1	L2	H	Ball Hole	Weight (Kg)
Φ19	50.5	16	105	57	58	15	0.84
Φ25	50.5	22	126	62	62	20	1.04
Φ32	50.5	29	137	68	71	25	1.3
Φ38	50.5	35	154	77	81	32	1.7
Φ45	64	41.7	165.5	81	90	40	2.09
Φ51	64	48	186	90	90	40	2.7
Φ63	77.5	59	184	92	103	50	3.65
Φ76	91	72	220	105	110	65	7
Φ89	106	84	240	133	118	80	9.3
Φ102	119	98	266	150	130	94	13
