(API 624 Additional High Temperature Version)
Key Specifications / Features
As a leading China Three-Way Ball Valve Manufacturer, we specialize in producing high-quality valves made from carbon steel, stainless steel, and duplex steel. Our valves are available in sizes ranging from 1/2 to 6 inches and pressure ratings from Class 150 to 600 LB. They feature four valve seats and come with both soft and hard seal options to meet various application requirements. Additionally, our valves are designed with L and T-type ports to provide versatile flow control. These robust and reliable valves are ideal for use in harsh working conditions, ensuring long service life and consistent performance.
- Model No.: MV-20250612-LTMSBV-04
- Hits: 0
- Categories: Low Torque Metal Seated Ball Valve
- Tags: 3-Way Ball Valve, Stainless Steel Ball Valve, Carbon Steel Ball Valve
Detail Information

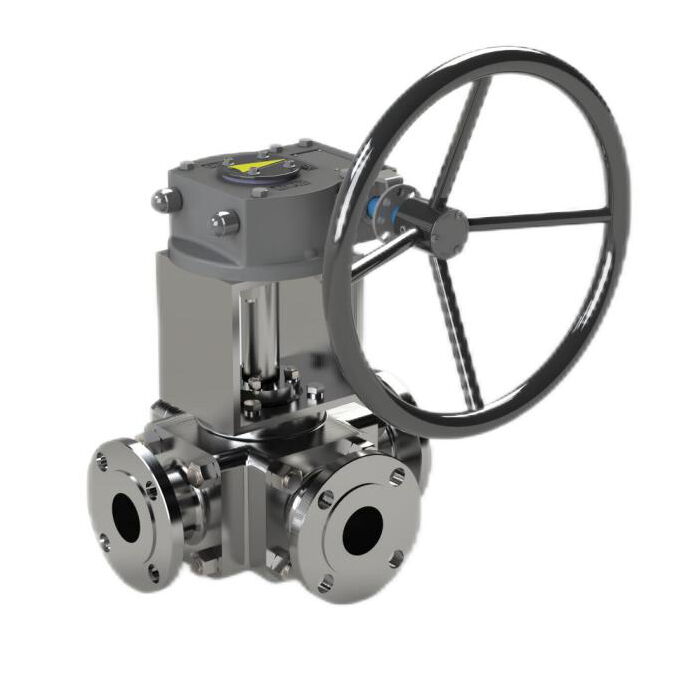

Product Name: Three-Way Ball Valve
Seal Type: Non-Metallic Sealing, Metal Sealing
Main Valve Structure: Three-Way, Four Valve Seats
Material: Carbon Steel, Stainless Steel, Duplex Steel, Special Materials
Nominal Size Range: 1/2-6 Inch, DN15-DN150
Pressure Rating: Class 150-600 LB, PN16-PN100
Temperature Range: -196°C to 600°C
Key Technical Features: Three-way L-type and T-type configurations, four-valve seat design, strong interchangeability, and more stable sealing performance.
Applicable Occasions: Suitable for applications with strict sealing requirements and directional control of particulate-laden fluids.
