Wear-resistant Fixed Ball Valve, 2/3 PC, 2–24 IN, CL150–2500
(API 624 Additional High Temperature Version)
Key Specifications / Features
The Wear-resistant Fixed Ball Valve Plant offers robust and durable valves designed for demanding industrial applications. These valves are available in two or three-piece configurations, constructed from high-quality materials such as carbon steel, stainless steel, and duplex steel, ensuring exceptional strength and longevity. They come in sizes ranging from 2 to 24 inches and are rated for pressure classes from 150 to 2500 LB, making them suitable for a wide range of operational pressures. The valves feature both non-metallic and metallic sealing options, providing flexibility to meet various sealing requirements and ensuring reliable performance in harsh environments.
- Model No.: MV-20250613-LTMSBV-01
- Hits: 17
- Categories: Low Torque Metal Seated Ball Valve
- Tags: Fixed Ball Valve, Carbon Steel Ball Valve, Stainless Steel Ball Valve
Detail Information

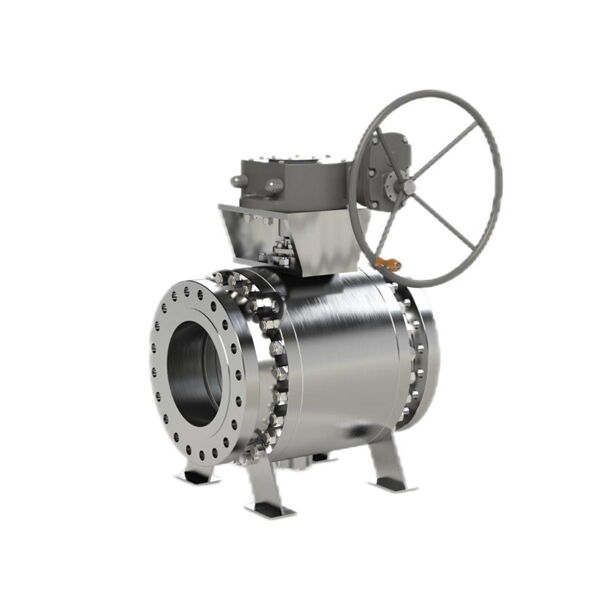

Product Name: Wear-resistant Fixed Ball Valve, Trunnion Mounted
Seal Type: Non-Metallic Sealing, Metallic Sealing
Main Valve Structure: Two-Piece, Three-Piece
Material: Carbon Steel, Stainless Steel, Duplex Steel, Special Materials
Nominal Size Range: 2–24 Inch, DN50–DN600
Pressure Rating: Class 150–2500 LB, PN16–PN420
Temperature Range: -46°C to 400°C
Key Technical Features: Wear-resistant, anti-slag
Applicable Occasions: Suitable for applications involving solid particles and conventional working conditions
