(API 624 Additional High Temperature Version)
Key Specifications / Features
The Hard Seal Fixed Ball Valve Factory specializes in producing high-performance trunnion-mounted ball valves tailored for harsh working conditions. These valves are constructed from durable materials such as carbon steel, stainless steel, and duplex steel, ensuring exceptional strength and resistance to extreme environments. Available in sizes ranging from 2 to 24 inches and pressure classes from 150 to 2500 LB, they offer reliable bidirectional sealing and precise flow control. The hard seal design enhances durability and longevity.
- Model No.: MV-20250612-LTMSBV-05
- Hits: 9
- Categories: Low Torque Metal Seated Ball Valve
- Tags: Fixed Ball Valve, Hard Seal Ball Valve, Carbon Steel Ball Valve
Detail Information

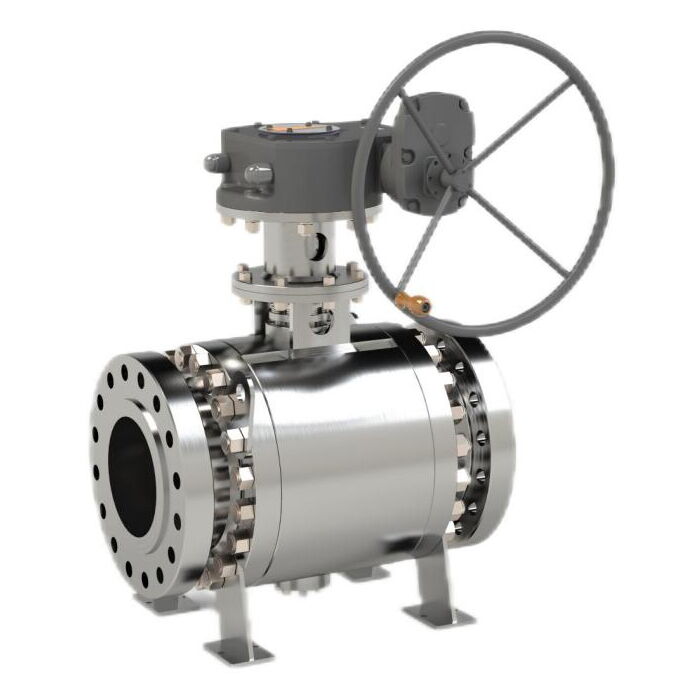

Product Name: Hard Seal Fixed Ball Valve for Harsh Working Conditions
Seal Type: Metal Sealing
Main Structure Type: 2-Piece, 3-Piece
Material: Carbon Steel, Stainless Steel, Duplex Steel, Special Materials
Nominal Size Range: 2-24 Inch, DN50-DN600
Pressure Rating: Class 150-2500 LB, PN16-PN420
Temperature Range: -46°C to 600°C
Key Technical Features: High-temperature resistance, wear-resistant, high-frequency operation, erosion-resistant, slurry-proof, and capable of handling solid particles.
Applicable Occasions: Suitable for most high-temperature and solid particle-containing applications, such as high-temperature steam, high-pressure hydrogenation, high-temperature slurries, and other high-temperature, solid particle-containing conditions. Provides better support for large actuators.
