(API 624 Additional High Temperature Version)
Key Specifications / Features
Our Hard Seal Floating Ball Valve Factory specializes in producing robust valves made from carbon steel, duplex steel, and other durable materials. These valves are available in 2 or 3-piece configurations, with sizes ranging from 1/2 to 24 inches and pressure ratings from Class 150 to 4500 LB. Designed for harsh working conditions, they offer exceptional durability and reliability, making them ideal for demanding industrial applications.
- Model No.: MV-20250612-LTMSBV-03
- Hits: 7
- Categories: Low Torque Metal Seated Ball Valve
- Tags: Hard Seal Ball Valve, Stainless Steel Ball Valve, Carbon Steel Ball Valve
Detail Information

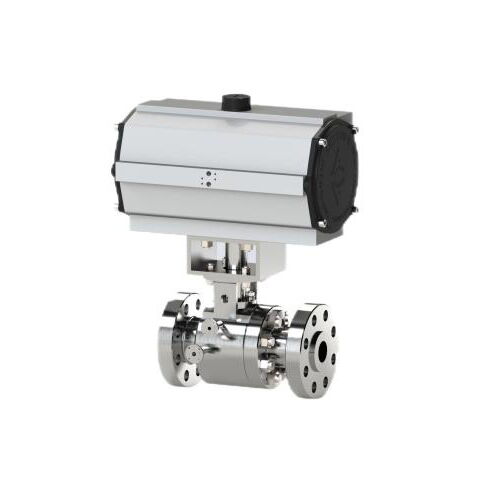

Product Name: Hard Seal Floating Ball Valve for Harsh Working Conditions
Seal Type: Metal Seal
Main Bodt Structure: 2-Piece, 3-Piece
Material: Carbon Steel, Stainless Steel, Duplex Steel, and other Special Materials
Nominal Sizes: 1/2-24 Inch, DN15-DN600
Pressure Rating: Class 150-4500 LB, PN16-PN760
Temperature Range: -46°C to 700°C
Key Technical Features
All-metal construction, conditional bidirectional sealing, wear-resistant, suitable for high-frequency operation, high-temperature resistance, slurry-proof, and capable of handling solid particles.
Applicable Working Conditions
Suitable for the vast majority of harsh working conditions, such as coking plants, S-zorb units, catalyst applications, mineral slurries, coal slurries, and other solid-containing, high-temperature, and corrosive environments.
