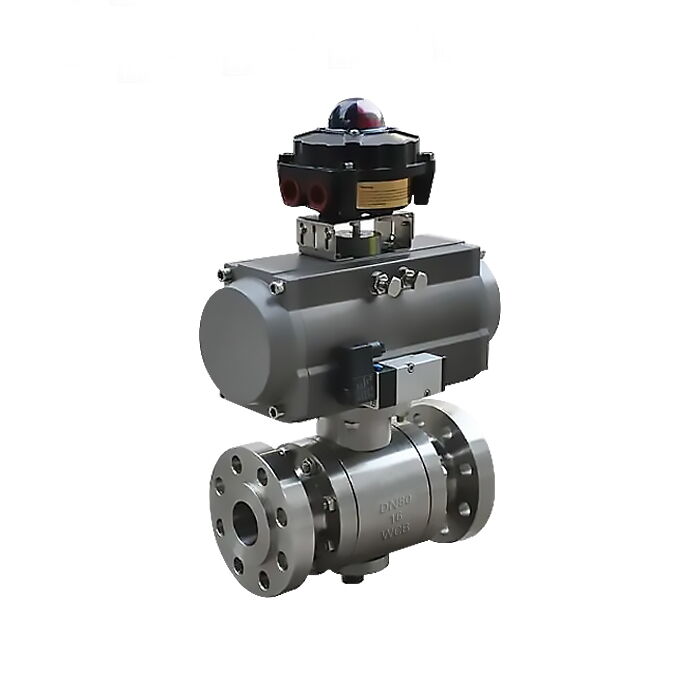

Pneumatic Actuated Ball Valves, BS 5351, DN80, PN16, 3 Inch
(API 624 Additional High Temperature Version)
Key Specifications / Features
The China Pneumatic Actuated Ball Valves Factory specializes in producing high-quality ball valves that adhere to multiple international standards, including ANSI B16.34, BS 5351, and ASTM A216. These valves feature a robust ASTM A216 WCB (carbon steel) body, ensuring durability and reliability. With a diameter of DN80 (3 inches) and a pressure rating of PN16 (Class 150 LB), they are designed for a variety of industrial applications. The low-emission design minimizes environmental impact, while the raised face (RF) flanged ends provide secure and leak-free connections.
- Model No.: MV-20250612-LTMSBV-02
- Hits: 24
- Categories: Low Torque Metal Seated Ball Valve
- Tags: ASTM A216 WCB Ball Valve, BS 5351 Ball Valve, Pneumatic Actuated Ball Valve
Detail Information
Product Name: Pneumatic Actuated Ball Valves
Design Standard: ANSI B16.34, BS 5351
Body Material: ASTM A216 WCB
Size: DN80, 3 Inch
Pressure: PN16, Class 150 LB
Operation: Pneumatic Actuator with Positioner
End Connection: RF Flanged to ANSI B16.5
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598, GB/T 13927
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A105, A105N, ASTM A182 F304/F304L, F316/F316L, F347, F321, F51, A350 LF2, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2 Inch, 1 Inch, 2 Inch, 4 Inch, 6 Inch, 8 Inch, 10 Inch,,,,32 Inch, DN15-DN800
Pressure Range: Class 150 LB, 300 LB, 400 LB, 600 LB, 900 LB, 1500 LB, 2500 LB, PN16, PN20, PN50, PN64, PN100, PN150, PN250, PN420
End Connection: Flanged (RF, RTJ)
Application: LNG, Coal Chemical, Refinery, etc.
