(API 624 Additional High Temperature Version)
Key Specifications / Features

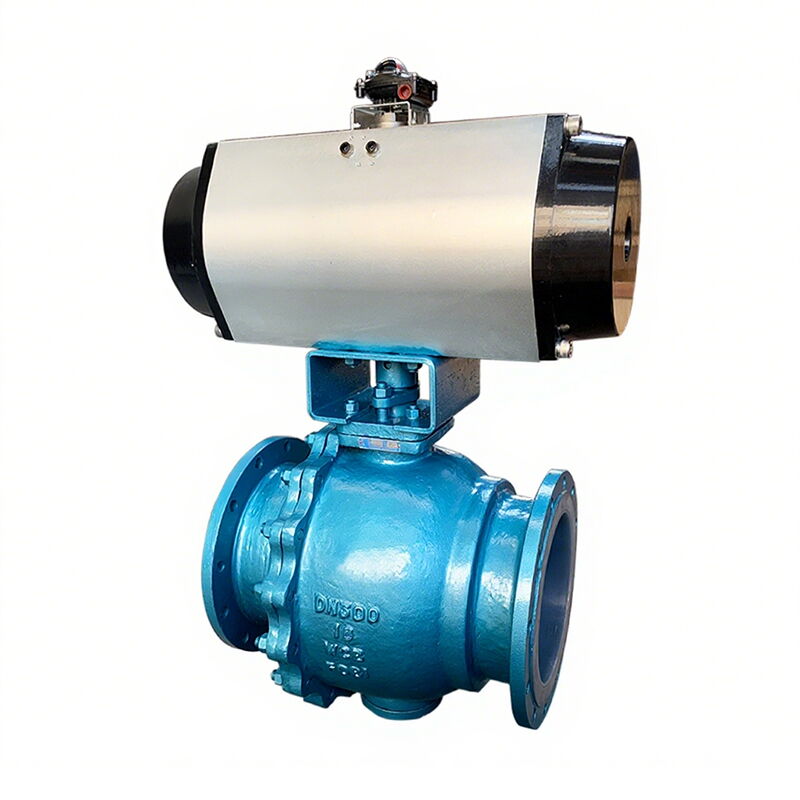

Our Fluorine-lined Ball Valve is manufactured to the highest industry standards, featuring a robust cast carbon steel body made from ASTM A216 WCB material. With a DN300 (12-inch) size and a pressure rating of PN16 (Class 150 LB), this valve is designed for reliable performance in demanding applications. It adheres to API 608 specifications, ensuring compatibility and quality. The valve is pneumatically actuated for precise control and comes with RF (raised face) flanged ends for easy installation.
- Model No.: MV-20250620-LECV-03
- Hits: 2
- Categories: Low Emission Control Valves , Low Torque Metal Seated Ball Valve
- Tags: Fluorine-lined Ball Valve, Pneumatic Actuated Ball Valve, ASTM A216 WCB Ball Valve
Detail Information
Product Name: Fluorine-lined Ball Valve
Design Standard: API 608
Body Material: ASTM A216 WCB, Cast Carbon Steel
Lining Material: PFA, FEP, PVDF
Size: DN300, 12 Inch
Pressure: PN16, Class 150 LB
Operation: Pneumatic Actuator
End Connection: RF Flanged
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, etc
Gasket & Packing Material: Graphite, PTFE
Size Range: 1/2-20 Inch, DN15-DN500
Pressure Range: PN10, PN16, Class 150 LB
End Connection: RF, RTJ
Temperature Range: up to 180°C
Medium: Water, Oil, Gas, Acids, ect
Pneumatic Control Valve, Class 600 LB, 260°C, ISO 15848-1cc3 TUV Certification
Pneumatic Ball Valve, Class 300 LB, 260°C, ISO 15848-1cc3 TUV Certification
