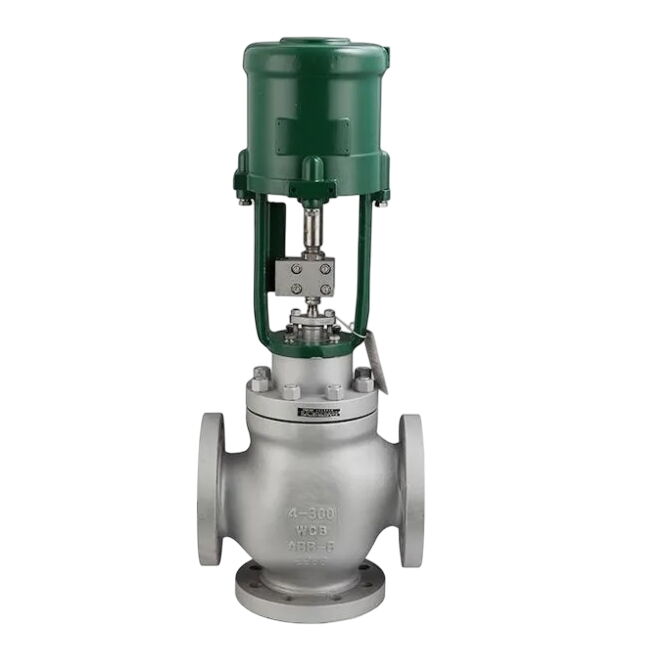

Electric 3-way Control Valve, WCB, 4 IN, CL300, Double Seated

Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

The Electric 3-way Control Valve is a robust and versatile solution for precise fluid control in industrial applications. This valve features a double-seated spool design, ensuring reliable and efficient operation. Constructed with a high-quality ASTM A216 WCB cast carbon steel body, it offers durability and strength. With a 4-inch (DN100) size and a rating of 300 LB (PN50), it is designed to handle significant pressure and flow. The valve is equipped with RF flanged ends for secure and leak-free connections. Its electric control mechanism allows for precise and automated control.

Model No.: MV-20250621-LECV-01
Hits: 20
Categories: Low Emission Control Valves
Tags: Electric Control Valve, Double Seated Control Valve, ASTM A216 WCB Control Valve

Request a quote

Detail Information

Product Name: Electric 3-way Control Valve
Spool Type: Double Seated Spool
Body Material: ASTM A216 WCB
Size: 4 Inch, DN100
Pressure: Class 300 LB, PN50
End Connection: RF Flanged
Operation: Electric Actuator
Flow Characteristics: Linear, Equal Percentage
Control Mode: On-Off or Regulation Type

Product Range

Size Range: DN25-DN300 (1-12 Inch)
Pressure Rating: Class 150 LB, 300 LB, 400 LB, 600 LB (PN16, PN50, PN64, PN100)
Body Material: ASTM A216 WCB, A351 CF3, CF3M, CF8, CF8M, A352 LCB
Packing Material: Graphite, PTFE
Seat Leakage: according to ANSI B16.104
End Connections: Flanged (RF, FF, RTJ)
Medium: Oil, Water, Steam, etc.
Temperature Range: -20°C to 230°C
