(API 624 Additional High Temperature Version)
Key Specifications / Features

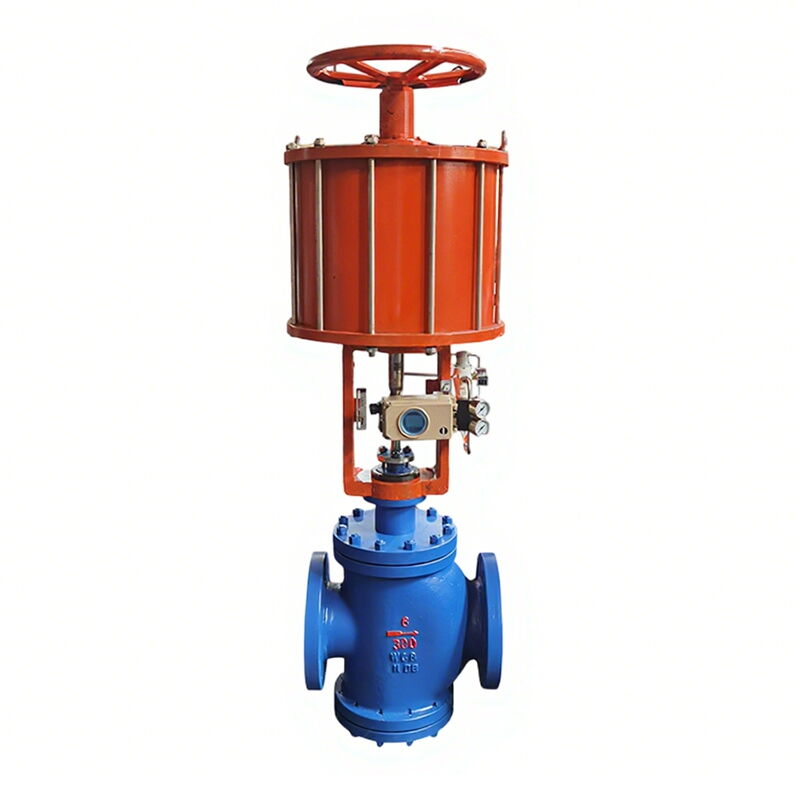

The Pneumatic Double Seated Control Valve from our factory is a high-quality industrial solution designed for reliable performance. It features a robust ASTM A216 WCB carbon steel body, ensuring strength and durability. With a 6-inch (DN150) size and a pressure class of 300 LB (PN50), this valve is built to handle significant flow rates and pressures. The RF flanged ends facilitate easy installation and maintenance, while the low fugitive emission design ensures environmental compliance and safety.
- Model No.: MV-20250619-LECV-02
- Hits: 2
- Categories: Low Emission Control Valves
- Tags: ASTM A216 WCB Control Valve, Double Seated Control Valve, Pneumatic Control Valve
Detail Information
Product Name: ASTM A216 WCB Control Valve, Double Seated
Body Material: ASTM A216 WCB, Carbon Steel
Size: 6 Inch, DN150
Pressure: Class 300 LB, PN50
End Connection: RF Flanged
Operation: Pneumatic Actuator
Flow Characteristics: Linear, Equal Percentage
Product Range
Size Range: DN25-DN300 (1-12 Inch)
Pressure Rating: Class 150 LB, 300 LB, 400 LB, 600 LB (PN16, PN50, PN64, PN100)
Body Material: ASTM A216 WCB, A351 CF3, CF3M, CF8, CF8M
Packing Material: Graphite, PTFE
Seat Leakage: according to ANSI B16.104
End Connections: Flanged (RF, FF, RTJ)
Medium: Water, Oil, Gas, etc.
Pneumatic Control Valve, Class 600 LB, 260°C, ISO 15848-1cc3 TUV Certification
Pneumatic Ball Valve, Class 300 LB, 260°C, ISO 15848-1cc3 TUV Certification
Similar Products
Electric 3-way Control Valve, WCB, 4 IN, CL300, Double Seated
Multi-stage Cage Guided Control Valve, A216 WCB, 4 IN, CL300

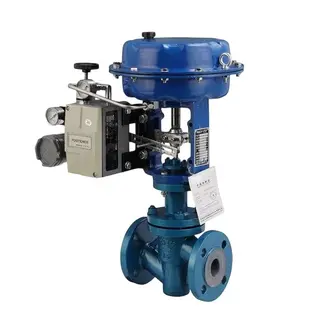

Double Seated Control Valve, A216 WCB, DN80, PN16, Pneumatic
