(API 624 Additional High Temperature Version)
Key Specifications / Features

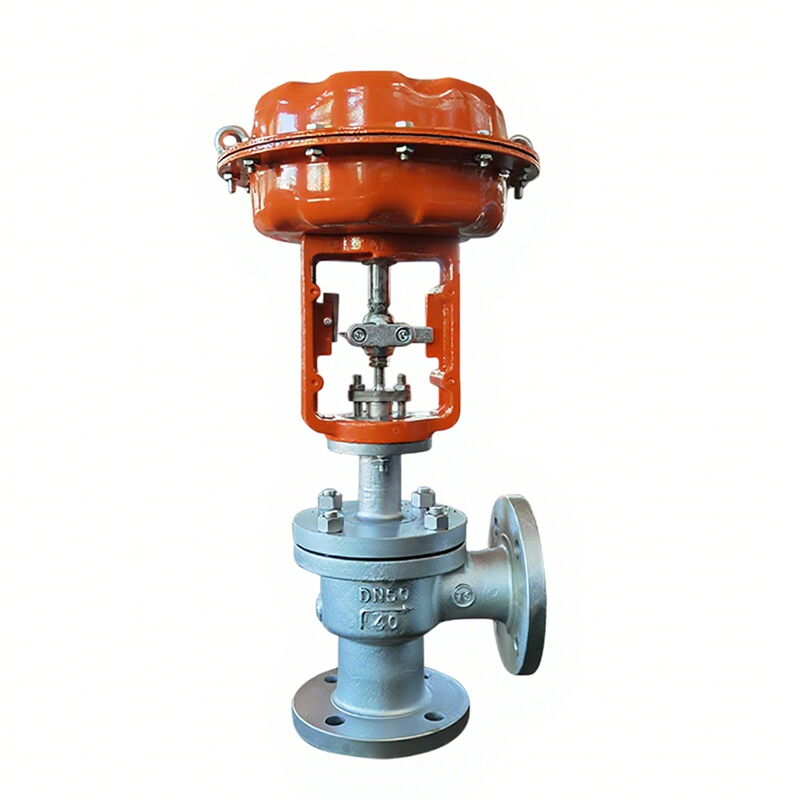

The Stainless Steel Angle Control Valve Plant offers a robust and reliable solution for precise flow control in industrial applications. This valve features a DN50 (2-inch) size with a PN40 pressure rating and a Class 300 LB specification, ensuring durability and high performance. It is equipped with a pneumatic actuator for efficient and responsive operation, and its RF flanged ends facilitate easy installation and maintenance. The angle design enhances flow dynamics, making it ideal for systems requiring precise control and high efficiency.
- Model no.: MV-20250620-LECV-01
- Hits: 0
- Categories: Low Emission Control Valves
- Tags: Pneumatic Control Valve, Angle Control Valve, Stainless Steel Control Valve
Detail Information
Product Name: Stainless Steel Angle Control Valve
Valve Body: Angle Valve
Body Material: Stainless Steel
Size: DN50, 2 Inch
Pressure: PN40, Class 300 LB
End Connection: RF Flanged
Operation: Pneumatic Actuator
Flow Characteristics: Linear, Equal Percentage
Product Range
Size Range: DN25-DN300 (1-12 Inch)
Pressure Rating: Class 150 LB, 300 LB, 400 LB (PN16, PN40, PN64)
Body Material: Stainless Steel, ASTM A351 CF3, A351 CF3M, A351 CF8, A351 CF8M
Packing Material: Graphite, PTFE
Seat Leakage: according to ANSI B16.104
End Connections: RF, FF, RTJ
Application: Chemical, Petroleum, Power Station, etc.
