(API 624 Additional High Temperature Version)
Key Specifications / Features

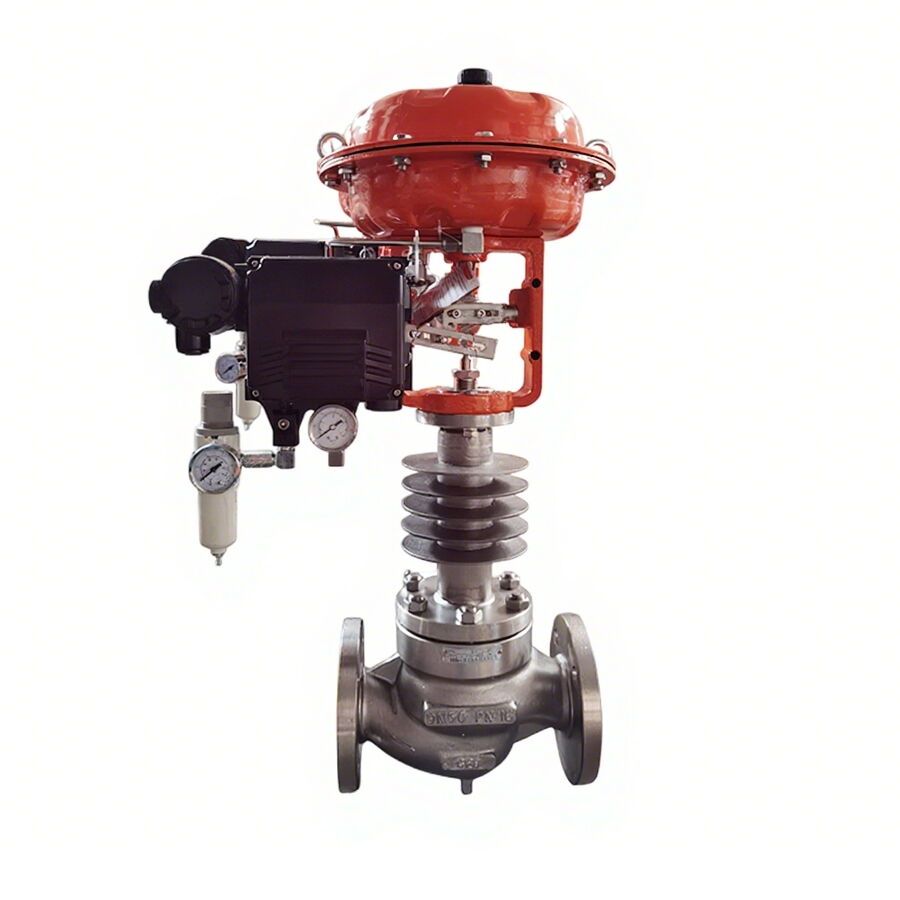

The Pneumatic High Temperature Control Valve is a robust solution for precise flow control in demanding industrial applications. This single-seated, sleeve-type valve features an ASTM A351 CF8 body, ensuring durability and resistance to high temperatures. With a DN50 (2-inch) size and a PN16 (Class 150 LB) pressure rating, it is designed for reliable performance under significant operating pressures. The valve is equipped with RF flanged ends for secure and leak-free connections.
- Model No.: MV-20250617-LECV-01
- Hits: 3
- Categories: Low Emission Control Valves , Ultra High Temperature Valves
- Tags: High-temperature Control Valve, ASTM A351 CF8 Control Valve, Pneumatic Control Valve
Detail Information
Product Name: Pneumatic High Temperature Control Valve
Trim Form: Single Seated, Sleeve Type
Body Material: ASTM A351 CF8
Size: DN50, 2 Inch
Pressure: PN16, Class 150 LB
End Connection: RF Flanged
Operation: Pneumatic Actuator
Flow Characteristics: Linear, Equal Percentage
Product Range
Size Range: DN20-DN300 (3/4-12 Inch)
Pressure Rating: Class 150 LB, 300 LB, 400 LB (PN16, PN25, PN40, PN64)
Body Material: Carbon, Stainless, Alloy Steel, ASTM A216 WCB, A351 CF3/CF3M, CF8/CF8M
Packing Material: Graphite, PTFE
Seat Leakage: according to ANSI B16.104
Temperature Range: 250°C to 450°C
Operation: Pneumatic Actuator (4-20mA)
End Connections: Flanged (RF, FF, RTJ), Welded (SW, BW)
Application: Chemical, Petroleum, Power Station, etc.
