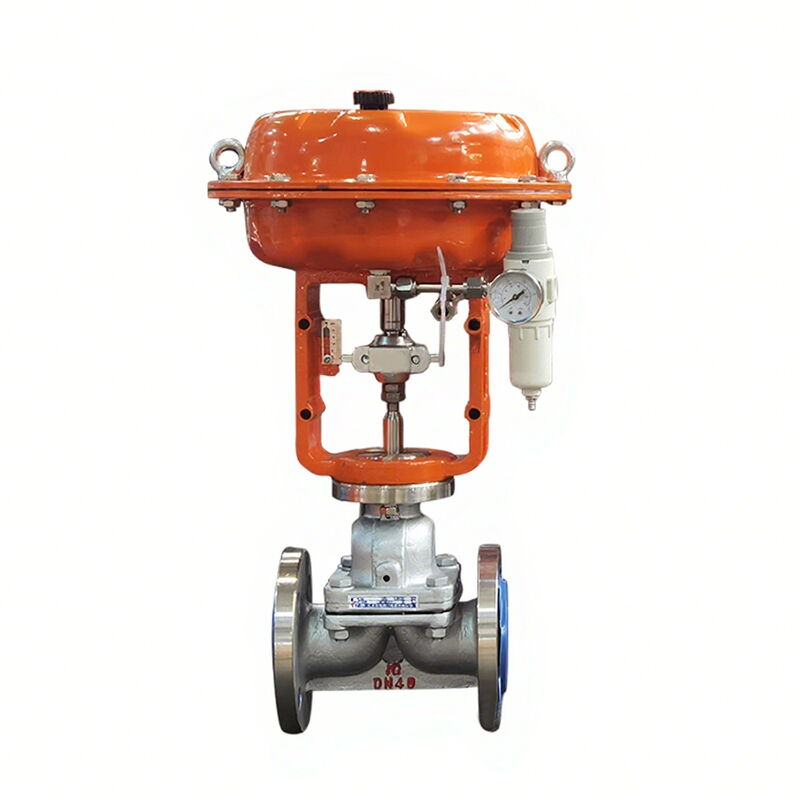

Pneumatic Diaphragm Control Valve, ASTM A351 CF8, DN40, PN10

Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

The Pneumatic Diaphragm Control Valve Factory offers a high-quality control valve with a stainless steel ASTM A351 CF8 body, ensuring durability and corrosion resistance. This valve has a DN40 (1-1/2 inch) size and a PN10 (Class 150 LB) pressure rating, making it suitable for a wide range of industrial applications. It features an equal percentage flow characteristic for precise control and is equipped with RF flanged ends for secure and reliable connections. The pneumatic actuation provides quick and responsive control, making it an ideal choice for processes requiring accurate flow regulation.

Model no.: MV-20250617-LECV-02
Hits: 0
Categories: Low Emission Control Valves
Tags: ASTM A351 CF8 Control Valve, Pneumatic Control Valve, Diaphragm Control Valve

Request a quote

Detail Information

Product Name: Pneumatic Diaphragm Control Valve
Valve Type: Diaphragm Valve
Body Material: ASTM A351 CF8
Size: DN40, 1-1/2 Inch
Pressure: PN10, Class 150 LB
End Connection: RF Flanged
Operation: Pneumatic Actuator
Flow Characteristics: Equal Percentage

Product Range

Size Range: DN20-DN200 (3/4-8 Inch)
Pressure Rating: Class 150 LB (PN6, PN10)
Body Material: Carbon, Stainless, Alloy Steel, ASTM A216 WCB, A351 CF3/CF3M, CF8/CF8M
Diaphragm Material: NBR, NR, PTFE
Packing Material: Graphite, PTFE
Seat Leakage: according to ANSI B16.104
Temperature Range: ≤150°C
Operation: Pneumatic Actuator (4-20mA)
End Connections: Flanged (RF, FF, RTJ), Welded (SW, BW)
Medium: Strong Acids, Alkalis, High Viscosity Medium, Medium Containing Particles, Toxic and Contamination-free.
