(API 624 Additional High Temperature Version)
Key Specifications / Features

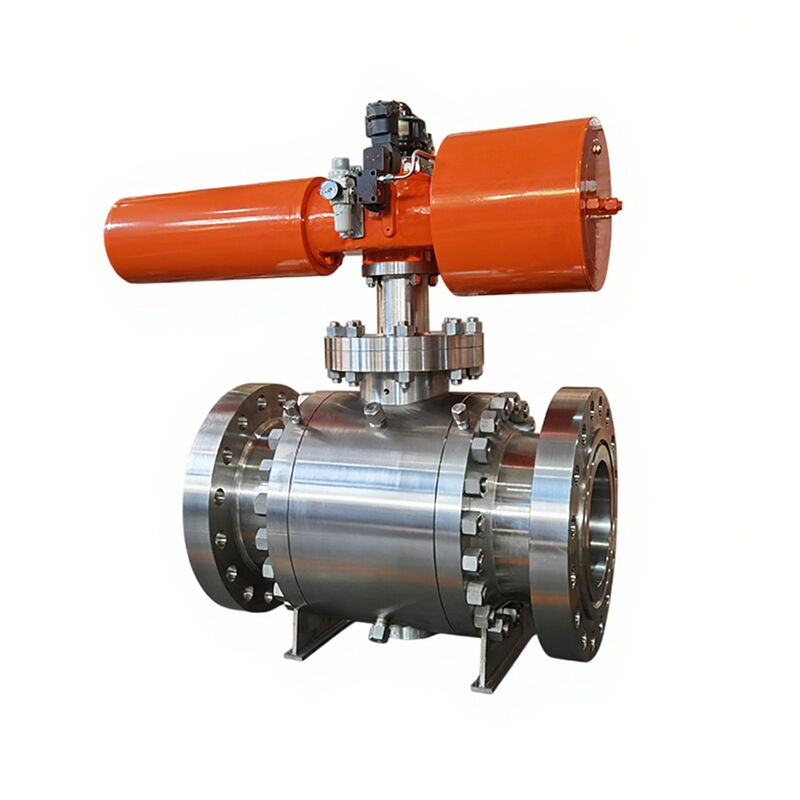

The Pneumatic Actuated Trunnion Ball Valve from the plant is a high-performance valve designed for critical industrial applications. It adheres to API 6D and ASME B16.34 standards, ensuring reliability and safety. The valve features a forged stainless steel body made from ASTM A182 F316L material, providing excellent corrosion resistance and durability. With a 10-inch (DN250) size, it has a rating of 900 LB and PN150, making it suitable for high-pressure applications. The trunnion design offers enhanced stability and reduced wear, while the pneumatic actuation provides precise and efficient control.
- Model No.: MV-20250617-LECV-03
- Hits: 4
- Categories: Low Emission Control Valves
- Tags: Pneumatic Actuated Ball Valve, Trunnion Mounted Ball Valve, ASTM A182 F316L Ball Valve
Detail Information
Product Name: Pneumatic Actuated Trunnion Ball Valve
Type: Trunnion Mounted Ball Valve
Design Standard: ASME B16.34, API 6D
Body Material: ASTM A182 F316L
Size: 10 Inch, DN250
Pressure: Class 900 LB, PN150
Operation: Pneumatic Actuated
End Connection: RF Flanged, ANSI B16.5
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A105, A105N, A182 F304/F304L, F316/F316L, F347, F321, F51, A350 LF2, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-32 Inch, DN15-DN800
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: Flanged (RF, RTJ), Welded, Threaded
Medium: Water, Gas, Oil, etc.
Pneumatic Control Valve, Class 600 LB, 260°C, ISO 15848-1cc3 TUV Certification
Pneumatic Ball Valve, Class 300 LB, 260°C, ISO 15848-1cc3 TUV Certification
