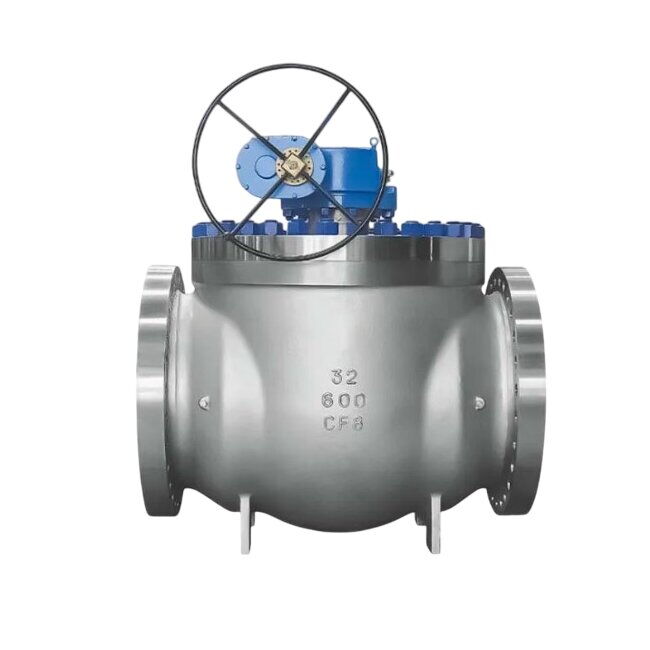

Top Entry Trunnion Ball Valve, API 6D, ASTM A351 CF8, 32 IN

Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

The Top Entry Trunnion Mounted Ball Valve is a high-performance valve designed for critical flow control applications. Manufactured to API 6D standards, it features a durable stainless steel body made from ASTM A351 CF8, ensuring excellent corrosion resistance. With a 32-inch size (DN800), Class 600 LB pressure rating, and PN100, this valve is built to handle high-pressure environments. It offers low leakage performance and is equipped with Raised Face (RF) flanged ends for secure installation.

Model no.: MV-20250409-LTMSBV-02
Hits: 1
Categories: Low Torque Metal Seated Ball Valve
Tags: Trunnion Mounted Ball Valve, Top Entry Ball Valve, ASTM A351 CF8 Ball Valve

Request a quote

Detail Information

Product Name: Top Entry Trunnion Mounted Ball Valve
Type: Trunnion Mounted Ball Valve
Design Standard: API 6D
Body Material: ASTM A351 CF8
Size: 32 Inch, DN800
Pressure: Class 600 LB, PN100
End: RF Flanged
Operation: Worm Gear

Product Range

Structure: Top Entry
Bore: Full/Reduced Bore
Size Range: NPS 1/2-2 Inch, DN15-DN50
Pressure Range: Class 150-1500 LB
Body Material: ASTM A105, A350 LF2, A182 F304/304L, F316/316L, ASTM A216 WCB, A352 LCB, A351 CF8, CF3, CF8M, CF3M, etc.
Seat Material: (Soft Seat) PTFE, RPTFE, Nylon, PEEK
Features: Fire Safe, Anti-static, Anti-blowout

Standards

Design: API 608, ISO 17292, API 6D, ASME B16.34
Inspection & Testing: API 598
Marking: MSS SP-25
Pressure/Temperature Rating: ASME B16.34
Fugitive Emission: ISO 15848
Face-to-Face: ASME B16.10
End-to-End: Manufacturer Standard or ASME B16.10
Socket Welding Ends: ASME B16.11
Screwed Ends: ASME B1.20.1
Flange Ends: ASME B16.5
Butt Welding Ends: ASME B16.25
