(API 624 Additional High Temperature Version)
Key Specifications / Features

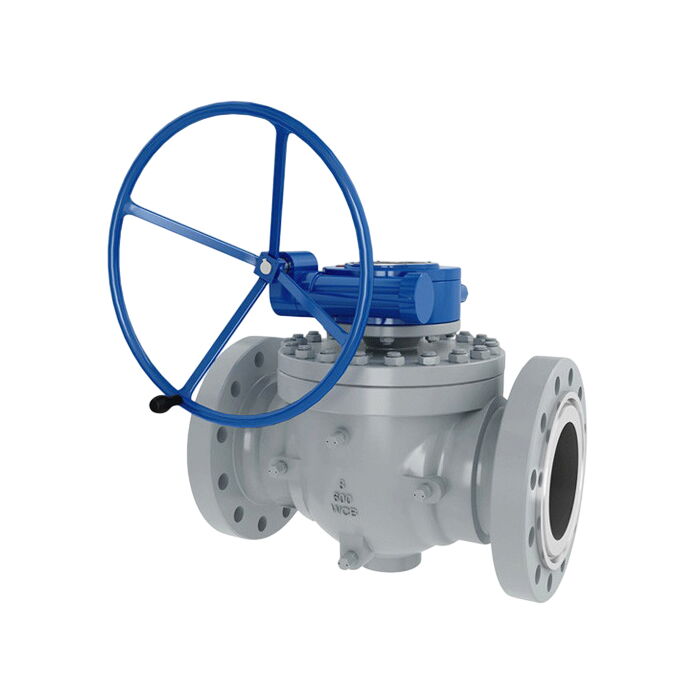

The API 6D Trunnion Ball Valve is a top-entry valve designed to meet stringent industry standards. It features an ASME B16.34 rating, ensuring high reliability and performance. The valve has an ASTM A216 WCB body, providing robust durability and strength. It includes a 2Cr13 ball, which offers excellent corrosion resistance and wear performance. Available in an 8-inch size with a DN200 nominal diameter, the valve is rated for Class 600 LB and PN100 pressure classes, making it suitable for high-pressure applications. The worm gear operation ensures smooth and reliable control.
- Model No.: MV-20250618-LTMSBV-02
- Hits: 3
- Categories: Low Torque Metal Seated Ball Valve
- Tags: 8 Inch Ball Valve, ASTM A216 WCB Ball Valve, Trunnion Mounted Ball Valve
Detail Information
Product Name: API 6D Trunnion Ball Valve, Top Entry
Type: Trunnion Mounted Ball Valve
Design Standard: API 6D, ASME B16.34
Body Material: ASTM A216 WCB
Ball Material: 2Cr13
Size: 8 Inch, DN200
Pressure: Class 600 LB, PN100
Operation: Worm Gear
End Connection: RF Flanged to ANSI B16.5
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598, API 6D
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Working Temperature: -29°C to 200°C
Product Range
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel
Gasket & Packing Material: Graphite/PTFE
Size Range: 2-32 Inch, DN50-DN800
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: Flanged, Welded
Applicable Medium: Water, Oil, Gas, Acids, etc.
Temperature Range: -29°C to 550°C
