(API 624 Additional High Temperature Version)
Key Specifications / Features

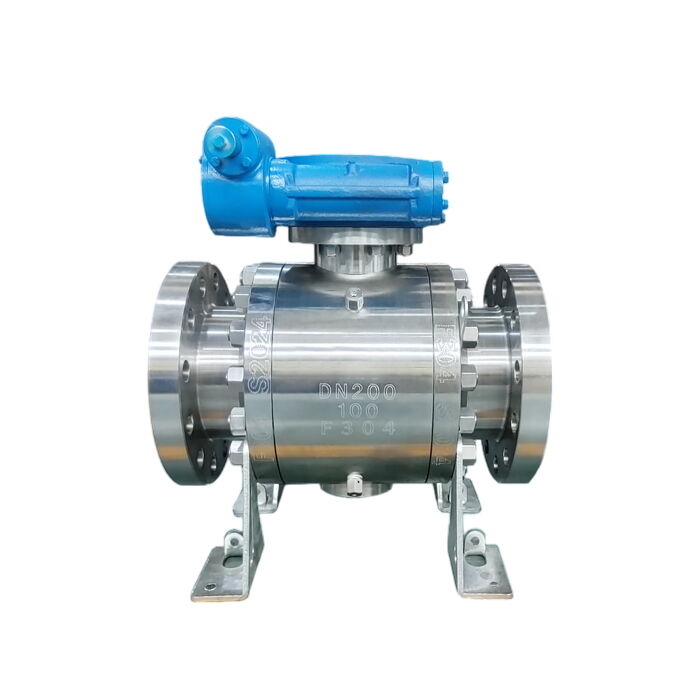

The China BS 5351 Ball Valves Factory offers high-quality 3-piece ball valves designed for robust performance. These valves feature a forged stainless steel body made from ASTM A182 F304, ensuring durability and corrosion resistance. With a DN200 (8-inch) diameter and a PN100 (Class 600 LB) pressure rating, they are suitable for high-pressure applications. The valves comply with ASME B16.34 standards and have raised face (RF) flanged ends for secure connections. These ball valves are ideal for industries requiring reliable and efficient flow control in demanding conditions.
- Model No.: MV-20250618-LTMSBV-01
- Hits: 1
- Categories: Low Torque Metal Seated Ball Valve
- Tags: ASTM A182 F304 Ball Valve, BS 5351 Ball Valve, DN200 Ball Valve
Detail Information
Product Name: BS 5351 Ball Valves, 3-piece
Design Standard: ASME B16.34, BS 5351
Body Material: ASTM A182 F304
Size: DN200, 8 Inch
Pressure: PN100, Class 600 LB
Operation: Gearbox
End Connection: RF Flanged to ANSI B16.5
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: ISO 15848-1, API 622, TA-Luft, ect
Product Range
Body Materials: ASTM A105, A105N, A182 F304, F304L, F316, F316L, etc.
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-24 Inch, DN15-DN600
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: Flanged (RF, RTJ), Welded (SW, BW)
Working Temperature: up to 300°C
Application: Water Treatment, LNG, Chemical, etc.
