(API 624 Additional High Temperature Version)
Key Specifications / Features

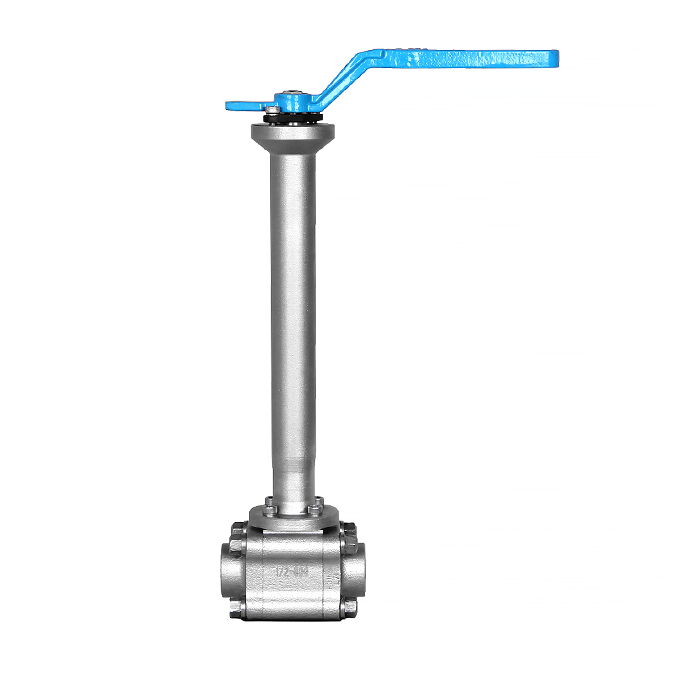

The ASTM A182 F304 Cryogenic Ball Valve is a high-performance valve designed for low-temperature applications. Featuring a forged stainless steel body, it complies with BS 6364 standards for cryogenic service. With a 1/2 inch size, Class 600 LB pressure rating, and welded ends, this valve ensures secure connections and reliable performance in extreme conditions. Its Low-E (low emissions) design minimizes leakage, making it ideal for environments requiring efficient sealing and flow control at low temperatures.
- Model no.: MV-20250403-CBAV-01
- Hits: 0
- Categories: Cryogenic Ball Valve
- Tags: BS 6364 Ball Valve, Cryogenic Ball Valve, ASTM A182 F304 Ball Valve
Detail Information
Product Name: ASTM A182 F304 Cryogenic Ball Valve
Design Standard: BS 6364
Body Material: ASTM A182 F304
Size: 1/2 Inch, DN15
Pressure: Class 600 LB, PN100
End: Welded
Operation: Lever
Product Range
Size Range: NPS 1/2-6 Inch, DN15-DN150
Pressure Class: Class 150-2500 LB
Operating Temperature: -196°C to 200°C
Structural Features: Bolted Bonnet (BB), Integral Extended Bonnet
Body Material: ASTM A105N, A350 LF2, LF3, A182 F11, F5, F22, F304, F304L, F316, F316L, F321, F304H, F316H, F321H, F51, F53, F55, F91, F92, F347, 310S, Incoloy 800H, Incoloy 600, Incoloy 625, etc
Applicable Standards
Design: ASME B16.34, BS 6364
Inspection & Testing: API 598, BS 6364
Marking: MSS SP-25
Pressure-Temperature Rating: ASME B16.34
Fugitive Emission Compliance: API 624, ISO 15848
Face-to-Face Dimensions: ASME B16.10
End-to-End Dimensions: Manufacturer Standard or ASME B16.10
End Connection Standards
Socket Welding: ASME B16.11
Screwed Ends: ASME B1.20.1
Flanged Ends: ASME B16.5
Butt Welding Ends: ASME B16.25
