(API 624 Additional High Temperature Version)
Key Specifications / Features

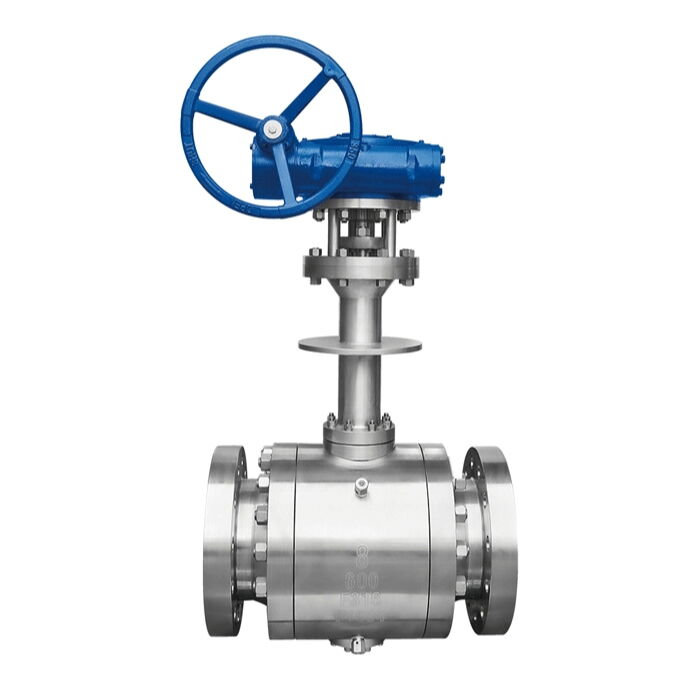

The Stainless Steel Cryogenic Ball Valve is designed for low leakage performance in extreme low-temperature conditions. Compliant with ASME B16.34 and BS 6364 standards, it features a durable ASTM A182 F316 body, sized 8 inch (DN200) with a high-pressure rating of Class 600 LB / PN100. Equipped with RF flanged ends, this valve ensures secure, reliable sealing and long-term operation in demanding cryogenic applications.
- Model no.: MV-20250411-CBAV-02
- Hits: 1
- Categories: Cryogenic Ball Valve
- Tags: Cryogenic Ball Valve, ASTM A182 F316 Ball Valve, 8 Inch Ball Valve
Detail Information
Product Name: ASTM A182 F316 Cryogenic Ball Valve
Design Standard: ASME B16.34, BS 6364
Body Material: ASTM A182 F316
Size: 8 Inch, DN200
Pressure: Class 600 LB, PN100
End: RF Flanged
Features: Fire Safe, Anti-Static, Anti-Blowout
Operation: Gear
Size Range: NPS 1/2-36 Inch, DN15-DN900
Pressure Range: Class 150-2500 LB, PN20-PN420
Body Material: ASTM A350 LF2, LF3, LF5, LF9, A182 F304, F316, F304L, F316L, etc
Bonnet Type: Side Entry, Top Entry, Integral Extended Bonnet
Structure: Floating Ball, Trunnion Mounted Ball
Seat Material: PCTFE (Soft Seat), STL, HVOF Coating (Metal Seat)
Temperature: -196°C to 200°C
Applicable Standards
Design Standard: ASME B16.34, BS 6364
Inspection and Testing: API 598, BS 6364
Marking: MSS SP-25
P/T Rating: ASME B16.34
Fugitive Emission: ISO 15848
Face to Face: ASME B16.10
End to End: Manufacturer std or ASME B16.10
Socket Welding: ASME B16.11
Screwed Ends: ASME B1.20.1
Flanged: ASME B16.5
Butt Welding: ASME B16.25
