(API 624 Additional High Temperature Version)
Key Specifications / Features
The Dual Grade Stainless Steel Ball Valve Factory offers high-quality ball valves designed to meet stringent industry standards. These valves are manufactured in compliance with API 602 and API 608, ensuring reliability and performance. Made from ASTM A182 F316/F316L stainless steel, they are durable and resistant to corrosion. With a 2-inch diameter and rated for Class 600 LB pressure, these valves are suitable for demanding applications. The extended stem design enhances accessibility and ease of operation, while the low fugitive emission feature minimizes environmental impact. The raised face (RF) connection ensures a secure and leak-tight seal
- Model no.: MV-20250611-CBV-01
- Hits: 0
- Categories: Cryogenic Ball Valve
- Tags: ASTM A182 F316 Ball Valve, API 602 Ball Valve, ASTM A182 F316L Ball Valve
Detail Information

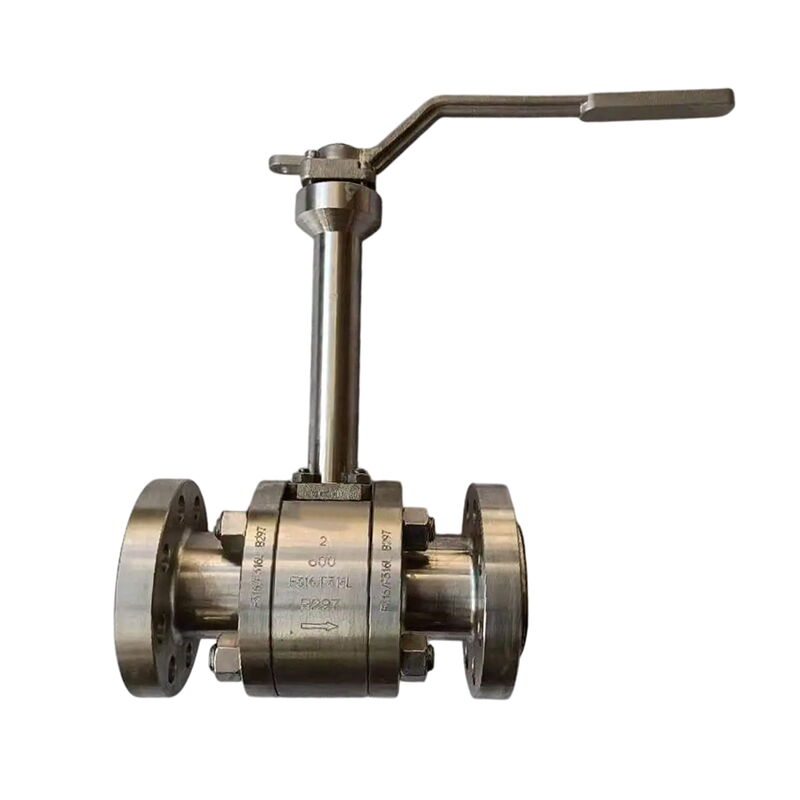

Product Name: ASTM A182 F316/F316L Ball Valve, Extended Stem
Design Standard: API 602, API 608
Body Material: ASTM A182 F316/F316L, Dual Grade Stainless Steel
Size: 2 Inch, DN50
Pressure: Class 600 LB, PN100
Operation: Lever
End Connection: RF
Face to Face Standard: ASME B16.10, MFG
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A105, A105N, ASTM A182 F304, F316, F51, A350 LF2, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-2 Inch, DN15-DN50
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: BW, Flanged
Temperature Range: -196°C to 429°C
Medium: LNG, LPG & Other Cryogenic Medium
