(API 624 Additional High Temperature Version)
Key Specifications / Features

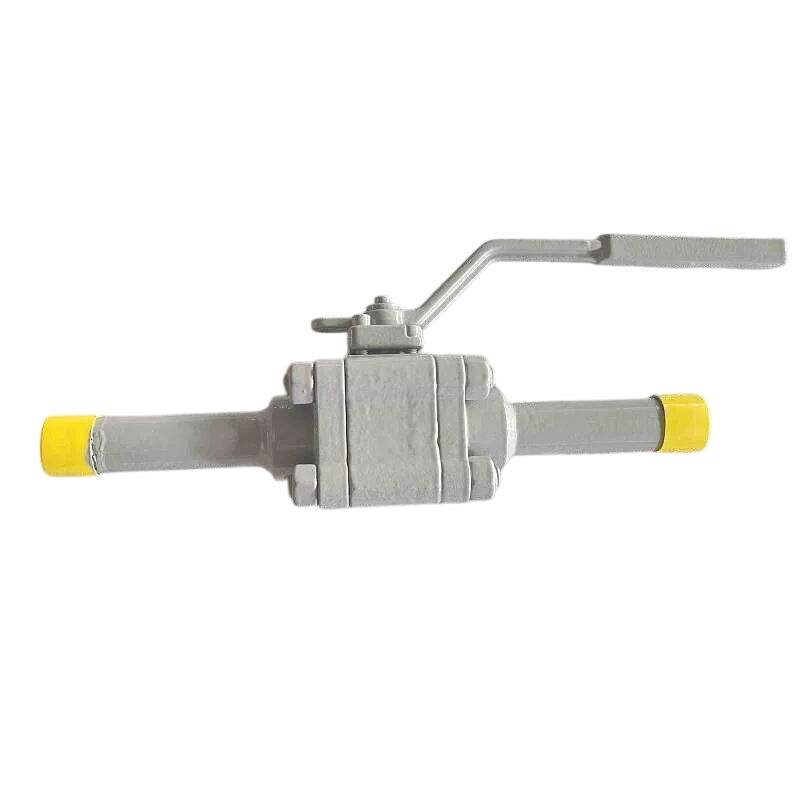

The ASTM A105N Floating Ball Valve Manufacturer offers high-performance ball valves designed to meet API 602 and API 608 standards. These valves feature a forged carbon steel body, ensuring durability and strength. With a 3/4-inch diameter and rated for Class 800 LB pressure, they are suitable for demanding applications. The low emission design minimizes environmental impact. The inclusion of nipples on both sides enhances versatility and ease of installation. Perfect for industries requiring reliable and efficient valve solutions.
- Model no.: MV-20250611-LTMSBV-11
- Hits: 1
- Categories: Low Torque Metal Seated Ball Valve
- Tags: Floating Ball Valve, ASTM A105N Ball Valve, 3/4 Inch Ball Valve
Detail Information
Product Name: ASTM A105N Floating Ball Valve
Type: Floating Ball Valve
Design Standard: API 602, API 608
Body Material: ASTM A105N
Size: 3/4 Inch, DN20
Pressure: Class 800 LB, PN130
Operation: Lever
End Connection: Nipple on Two Sides
Face to Face Standard: ASME B16.10, MFG
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A105, A105N, ASTM A182 F304, F316, F51, A350 LF2, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-2 Inch, DN15-DN50
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: BW, Flanged (RF, RTJ)
Temperature Range: -29°C to 429°C
Medium: Water, Oil & Gas
