(API 624 Additional High Temperature Version)
Key Specifications / Features
The China ASTM A216 WCB Ball Valves Supplier offers top-tier ball valves designed to meet rigorous industry standards. These valves comply with API 6D and ASME B16.34, ensuring exceptional performance and safety. Constructed from high-quality cast carbon steel (A216 WCB), they are robust and durable. With a 30-inch diameter (DN750) and rated for Class 600 LB pressure (equivalent to PN100), these valves are ideal for high-pressure applications. The low emission feature minimizes environmental impact, while the raised face (RF) flanged ends ensure a secure and leak-tight connection.
- Model no.: MV-20250611-LTMSBV-10
- Hits: 0
- Categories: Low Torque Metal Seated Ball Valve
- Tags: API 6D Ball Valve, 30 Inch Ball Valve, ASTM A216 WCB Ball Valve
Detail Information

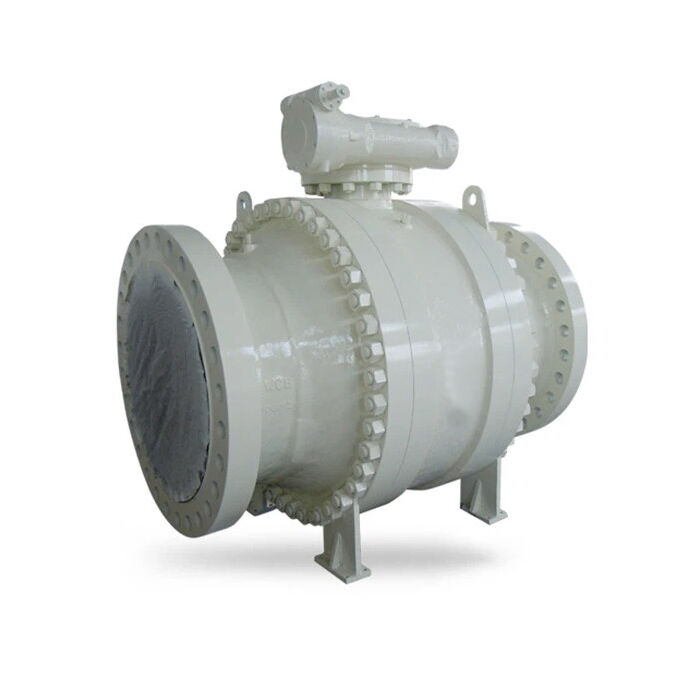

Product Name: ASTM A216 WCB Ball Valves, Bolted Bonnet
Design Standard: API 6D, ASME B16.34
Body Material: ASTM A216 WCB
Size: 30 Inch, DN750
Pressure: Class 600 LB, PN100
Operation: Gearbox
End Connection: RF Flanged
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A216 WCB, A217 WC6, A351 CF3, CF3M, CF8, CF8M, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-32 Inch, DN15-DN800
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: BW, Flanged (RF, RTJ)
Temperature Range: -29°C to 429°C
Medium: Water, Oil & Gas
