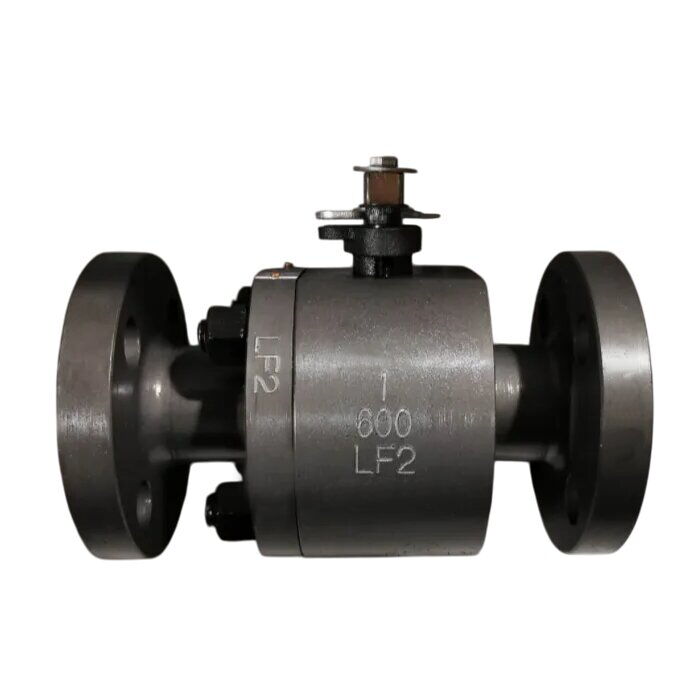

ASTM A350 LF2 Floating Ball Valve, API 6D, 1 Inch, CL600 LB

Product Name: ASTM A350 LF2 Floating Ball Valve
Design Standard: API 6D
Body Material: ASTM A350 LF2
Size: 1 Inch, DN25
Pressure: Class 600 LB, PN100
End: Flanged
Operation: Bare Shaft

Product Range

Structure: Floating Ball
Size Range: NPS 1/2-8 Inch, DN15-DN200
Pressure Range: Class 150-1500 LB
Body Material: ASTM A105, A350 LF2, A182 F304/304L, F316/316L, F51, Monel, Inconel, etc.
Seat Material:
Soft Seat: PTFE, RPTFE, Nylon, PEEK
Metal Seat: STL, HVOF Coating
Bonnet Type: Side Entry (2-piece or 3-piece split body)
Bore: Full Bore/Reduced Bore
Features: Fire Safe, Anti-static, Anti-blowout

Standards

Design: API 608, ISO 17292, API 6D, ASME B16.34
Inspection & Testing: API 598
Marking: MSS SP-25
Pressure/Temperature Rating: ASME B16.34
Fugitive Emission: ISO 15848
Face-to-Face: ASME B16.10
End-to-End: Manufacturer Standard or ASME B16.10
Socket Welding Ends: ASME B16.11
Screwed Ends: ASME B1.20.1
Flange Ends: ASME B16.5
Butt Welding Ends: ASME B16.25

For ball valve packing rings, we exclusively use M641 specialty low-emission packing designed specifically for ball valves.

If conventional graphite packing rings are used in stock inventory, they can strongly adhere to the valve stem over time, leading to excessive operating torque and leakage issues during later use.

By adopting our low-emission packing, even after prolonged storage, the valve maintains:

• Very low operating torque

• Excellent sealing performance

• No adhesion issues

API 622 TUV Experimental Data Report

We have optimized the design of the packing structure for floating ball valves. Based on our field experience in petrochemical applications, we found that traditional designs using O-rings plus packing material may appear more reliable but actually create potential risks.

In conventional designs, the O-ring might become the primary seal while misleading users to believe the graphite packing also functions as a main seal. However, O-rings are vulnerable to chemical corrosion. Once the O-ring fails and the graphite packing is insufficient, both sealing mechanisms may fail, making it impossible to perform secondary pre-tightening on-site.

Additionally, our tests confirmed that insufficient graphite packing consistently fails fire safety tests. Therefore, we optimized the design by removing the O-ring and relying solely on packing as the primary seal. The benefits include 100% fire safety performance, 100% low leakage, and enhanced stem strength.

ISO 15848-1 Type Test Report at 400°C
