(API 624 Additional High Temperature Version)
Key Specifications / Features

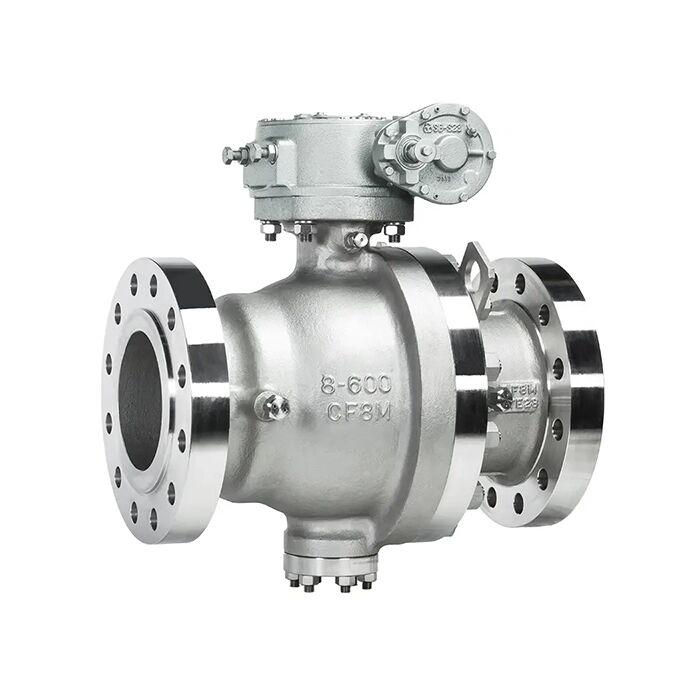

The 2-piece Trunnion Mounted Ball Valve features a durable ASTM A351 CF8M body with an SS 316 ball and metal seat, ensuring robust performance in demanding applications. With an 8-inch size and Class 600 LB rating, it complies with API 6D and ASME B16.34 standards. Designed for low leakage performance, this valve offers exceptional sealing and reliable operation, making it ideal for industries requiring precise flow control and high-pressure resistance.
- Model no.: MV-20250408-LTMSBV-05
- Hits: 0
- Categories: Low Torque Metal Seated Ball Valve
- Tags: Trunnion Mounted Ball Valve, ASTM A351 CF8M Ball Valve, 8 Inch Ball Valve
Detail Information
Product Name: Trunnion Mounted Ball Valve, 2-piece Body
Design Standard: API 6D, ASME B16.34
Body Material: ASTM A351 CF8M
Ball Material: SS 316
Size: 8 Inch, DN200
Pressure: Class 600 LB, PN100
End: Flanged
Operation: Gear Operated
Product Range
Structure: Trunnion Mounted Ball
Size Range: NPS 1/2-36 Inch, DN15-DN900
Pressure Range: Class 150-2500 LB, PN20-PN420
Bonnet Type: Side Entry (2-piece or 3-piece split body)
Bore: Full/Reduced Bore
Body Material: ASTM A216 WCB, A352 LCB, A351 CF8, CF3, CF8M, CF3M, etc.
Seat Material:
(Soft Seat) PTFE, RPTFE, Nylon, PEEK, PCTFE
(Metal Seat) STL, HVOF Coating
Features: Fire Safe, Anti-static, Anti-blowout, Double Block & Bleed Design
Standards
Design: API 6D, ASME B16.34
Inspection & Testing: API 598
Marking: MSS SP-25
Pressure/Temperature Rating: ASME B16.34
Fugitive Emission: ISO 15848
Face-to-Face: ASME B16.10
End-to-End: Manufacturer Standard or ASME B16.10
Socket Welding Ends: ASME B16.11
Screwed Ends: ASME B1.20.1
Flange Ends: ASME B16.5
Butt Welding Ends: ASME B16.25
