(API 624 Additional High Temperature Version)
Key Specifications / Features

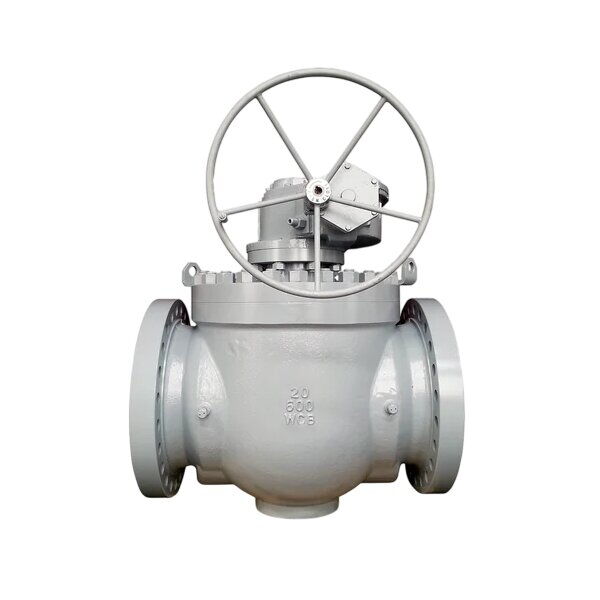

The Top Entry Trunnion Mounted Ball Valve features a robust ASTM A216 WCB body with an SS 304 ball, designed for high-performance applications. With a 20-inch (DN500) size and Class 600 LB rating, this valve complies with API 6D and ASME B16.34 standards. It offers a PN100 pressure rating and low leakage performance, ensuring reliable sealing and operation under demanding conditions. Ideal for large-scale industrial systems requiring efficient flow control and durable, leak-proof performance.
- Model no.: MV-20250408-LTMSBV-06
- Hits: 0
- Categories: Low Torque Metal Seated Ball Valve
- Tags: Trunnion Mounted Ball Valve, ASTM A216 WCB Ball Valve, 20 Inch Ball Valve
Detail Information
Product Name: ASTM A216 WCB Trunnion Mounted Ball Valve, Top Entry
Design Standard: API 6D, ASME B16.34
Body Material: ASTM A216 WCB
Ball Material: SS 304
Size: 20 Inch, DN500
Pressure: Class 600 LB, PN100
End: RF Flanged
Operation: Worm Gear
Product Range
Structure: Trunnion Mounted Ball
Size Range: NPS 1/2-36 Inch, DN15-DN900
Pressure Range: Class 150-2500 LB, PN20-PN420
Bonnet Type: Side Entry (2-piece or 3-piece split body)
Bore: Full/Reduced Bore
Body Material: ASTM A216 WCB, A352 LCB, A351 CF8, CF3, CF8M, CF3M, etc.
Seat Material:
(Soft Seat) PTFE, RPTFE, Nylon, PEEK, PCTFE
(Metal Seat) STL, HVOF Coating
Features: Fire Safe, Anti-static, Anti-blowout, Double Block & Bleed Design
Standards
Design: API 6D, ASME B16.34, BS 5351
Inspection & Testing: API 598
Marking: MSS SP-25
Pressure/Temperature Rating: ASME B16.34
Fugitive Emission: ISO 15848
Face-to-Face: ASME B16.10
End-to-End: Manufacturer Standard or ASME B16.10
Socket Welding Ends: ASME B16.11
Screwed Ends: ASME B1.20.1
Flange Ends: ASME B16.5
Butt Welding Ends: ASME B16.25
