(API 624 Additional High Temperature Version)
Key Specifications / Features

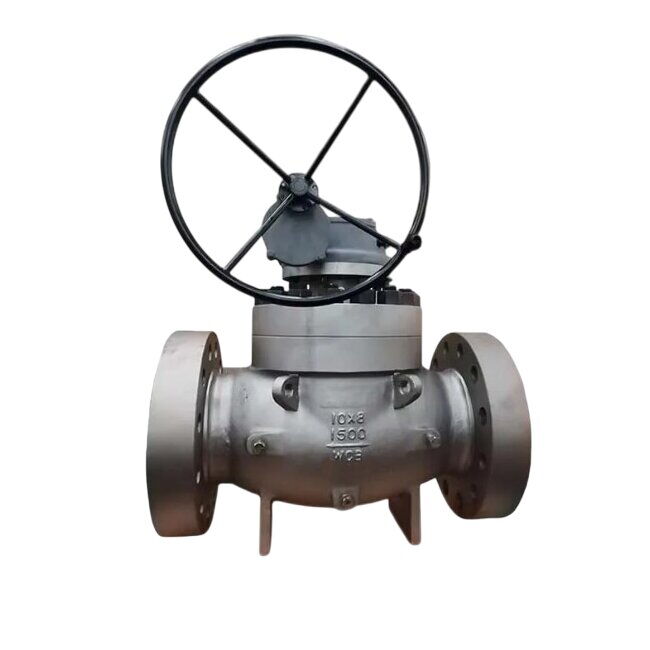

The Reduced Port Ball Valve is a high-quality, trunnion-mounted, top-entry valve designed for demanding industrial applications. Built to API 6D standards and crafted from ASTM A216 WCB, it features a 10*8-inch size (DN250*DN200) and is rated for Class 1500 LB and PN250 pressure conditions. This valve ensures low leakage performance and reliable operation under high-pressure systems. It also features reduced port design.
- Model no.: MV-20250409-LTMSBV-03
- Hits: 0
- Categories: Low Torque Metal Seated Ball Valve
- Tags: ASTM A216 WCB Ball Valve, Top Entry Ball Valve, Reduced Port Ball Valve
Detail Information
Product Name: Reduced Port Ball Valve, Top Entry
Type: Trunnion Mounted Ball Valve, Reduced Port
Design Standard: API 6D
Body Material: ASTM A216 WCB
Size: 10*8 Inch, DN250*DN200
Pressure: Class 1500 LB, PN250
End: RF Flanged
Operation: Worm Gear
Product Range
Structure: Top Entry
Bore: Full/Reduced Bore
Size Range: NPS 1/2-2 Inch, DN15-DN50
Pressure Range: Class 150-1500 LB
Body Material: ASTM A105, A350 LF2, A182 F304/304L, F316/316L, ASTM A216 WCB, A352 LCB, A351 CF8, CF3, CF8M, CF3M, etc.
Seat Material: (Soft Seat) PTFE, RPTFE, Nylon, PEEK
Features: Fire Safe, Anti-static, Anti-blowout
Standards
Design: API 608, ISO 17292, API 6D, ASME B16.34
Inspection & Testing: API 598
Marking: MSS SP-25
Pressure/Temperature Rating: ASME B16.34
Fugitive Emission: ISO 15848
Face-to-Face: ASME B16.10
End-to-End: Manufacturer Standard or ASME B16.10
Socket Welding Ends: ASME B16.11
Screwed Ends: ASME B1.20.1
Flange Ends: ASME B16.5
Butt Welding Ends: ASME B16.25
