(API 624 Additional High Temperature Version)
Key Specifications / Features

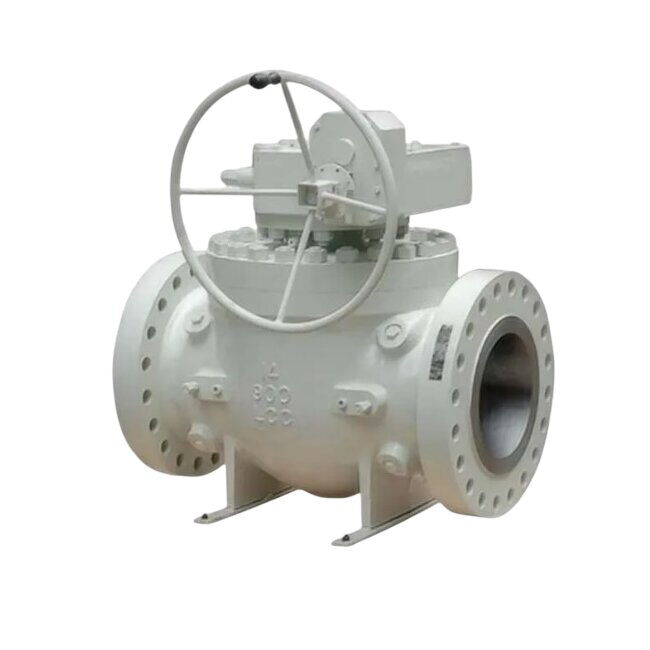

The ASTM A352 LCC Ball Valve is a robust, trunnion-mounted valve designed for high-performance applications. Manufactured to API 6D standards, it features a 14-inch size with a Class 800 LB pressure rating. This top-entry valve is equipped with fire-safe, anti-static, and anti-blowout features, ensuring safe and reliable operation in extreme conditions. With low leakage performance, it offers superior sealing and durability, making it ideal for critical industrial systems that require enhanced safety and minimal maintenance.
- Model no.: MV-20250409-LTMSBV-04
- Hits: 5
- Categories: Low Torque Metal Seated Ball Valve
- Tags: Top Entry Ball Valve, Trunnion Mounted Ball Valve, ASTM A352 LCC Ball Valve
Detail Information
Product Name: ASTM A352 LCC Ball Valve, Top Entry
Type: Trunnion Mounted Ball Valve
Design Standard: API 6D
Body Material: ASTM A352 LCC
Size: 14 Inch, DN350
Pressure: Class 800 LB, PN130
End: Flanged
Operation: Worm Gear
Features: Fire Safe, Anti-static, Anti-blowout
Product Range
Structure: Top Entry
Bore: Full/Reduced Bore
Size Range: NPS 1/2-2 Inch, DN15-DN50
Pressure Range: Class 150-1500 LB
Body Material: ASTM A105, A350 LF2, A182 F304/304L, F316/316L, ASTM A216 WCB, A352 LCB/LCC, A351 CF8, CF3, CF8M, CF3M, etc.
Seat Material: (Soft Seat) PTFE, RPTFE, Nylon, PEEK, Metal Seat
Standards
Design: API 608, ISO 17292, API 6D, ASME B16.34
Inspection & Testing: API 598
Marking: MSS SP-25
Pressure/Temperature Rating: ASME B16.34
Fugitive Emission: ISO 15848
Face-to-Face: ASME B16.10
End-to-End: Manufacturer Standard or ASME B16.10
Socket Welding Ends: ASME B16.11
Screwed Ends: ASME B1.20.1
Flange Ends: ASME B16.5
Butt Welding Ends: ASME B16.25
