(API 624 Additional High Temperature Version)
Key Specifications / Features

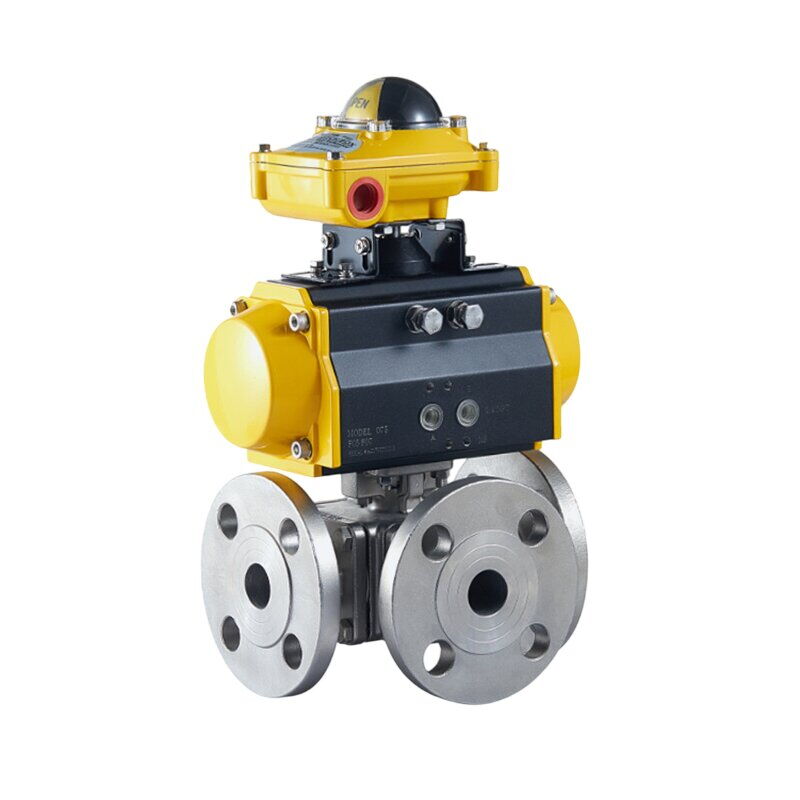

The Pneumatic Actuated 3-Way Ball Valve is designed for precise flow control in various industrial applications. Featuring a T/L-port configuration, it comes in sizes ranging from 1/2 to 8 inches and is available in Class 150/300 LB pressure ratings. Constructed from ASTM A216 WCB and A351 CF8/CF8M materials, the valve ensures high durability and low leakage performance. It meets ASME B16.34 standards and is equipped with flanged ends for easy installation.
- Model no.: MV-20250409-LTMSBV-01
- Hits: 1
- Categories: Low Torque Metal Seated Ball Valve
- Tags: Pneumatic Actuated Ball Valve, ASME B16.34 Ball Valve, 3-Way Ball Valve
Detail Information
Product Name: Pneumatic Actuated 3-Way Ball Valve
Port Type: T-port/L-port
Size: 1/2-8 Inch, DN15–DN200
Working Pressure: Class 150/300 LB, PN16/40, JIS 10K
Body Material: ASTM A216 WCB, A351 CF8, CF8M
Actuator: Pneumatic
Connection: Flanged End
Working Temperature: -20°C to 180°C
Standards
Design Standard: ASME B16.34
Flange Dimension: ASME B16.5
Inspection & Testing: API 598
Features
- Investment casting construction for superior durability
- Locking device handle for enhanced safety
- Anti-static device to prevent electrical discharge
- Blow-out proof stem for added reliability
- Compatible with automation accessories for streamlined operation
- ISO 5211 direct mounting pad for easy actuator installation
- Four seat design for improved sealing performance
- Live-loading design to maintain a constant stem packing pressure
Product Applications
- Petroleum
- Chemical
- Natural Gas
- Biochemical
- Pharmaceutical
- Environmental Protection
- New Energy
