(API 624 Additional High Temperature Version)
Key Specifications / Features

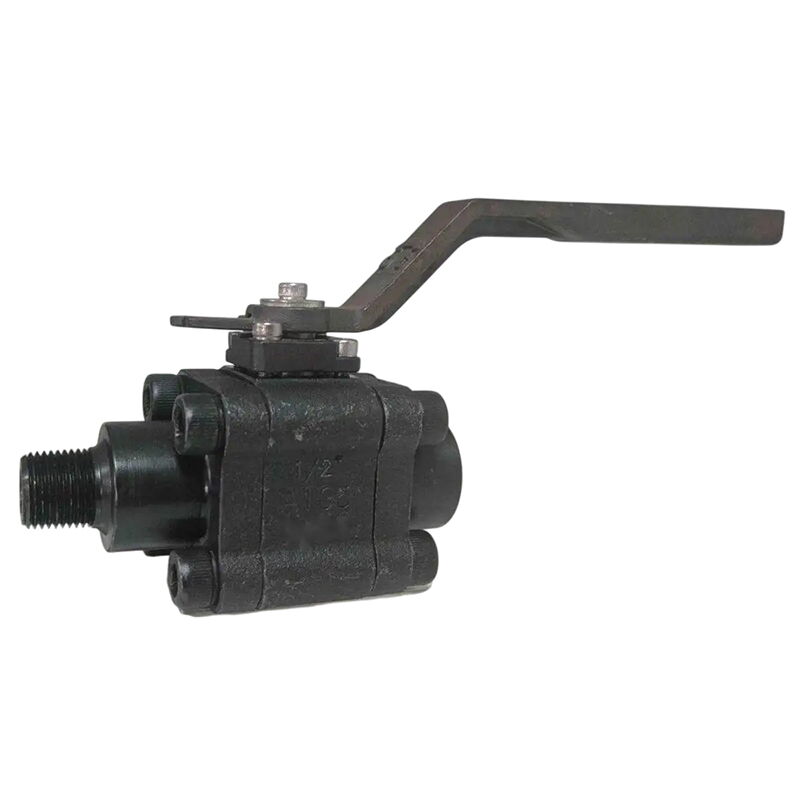

The API 608 Ball Valve Plant in China offers a range of high-quality ball valves, including a specific model that meets API 602 standards. This particular valve is a three-piece design, constructed from forged carbon steel ASTM A105N, ensuring durability and strength. It features a 1/2 inch size, a Class 1500 LB pressure rating, and is designed for low emission performance, making it environmentally friendly and suitable for high-pressure applications. The valve also comes with NPT and SW ends, providing versatile connection options for various industrial systems.
- Model No.: MV-20250611-LTMSBV-09
- Hits: 1
- Categories: Low Torque Metal Seated Ball Valve
- Tags: ASTM A105N Ball Valve, API 602 Ball Valve, API 608 Ball Valve
Detail Information
Product Name: API 608 Ball Valve, 3PC
Design Standard: API 602, API 608
Body Material: ASTM A105N
Size: 1/2 Inch, DN15
Pressure: Class 1500 LB, PN250
Operation: Lever
End Connection: NPT * SW
Face to Face Standard: ASME B16.10, MFG
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A105, A105N, ASTM A182 F304, F316, F51, A350 LF2, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-2 Inch, DN15-DN50
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: BW, Flanged (RF, RTJ)
Temperature Range: -29°C to 429°C
Medium: Water, Oil & Gas
