ASTM A182 F51 Ball Valve, API 602, API 608, 1/2 Inch, 150 LB

Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

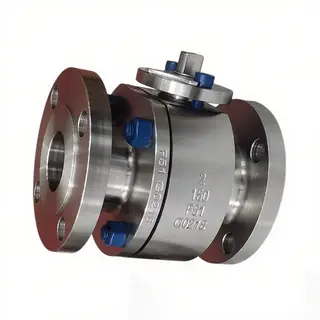

The ASTM A182 F51 Ball Valve is a high-quality, durable valve designed for various industrial applications. Manufactured in compliance with API 602 and API 608 standards, this 2-piece valve is crafted from Duplex Stainless Steel, offering excellent corrosion resistance and mechanical strength. It features low fugitive emission capabilities, ensuring minimal leakage and environmental safety. With a size of 1/2 inch (DN15) and a pressure rating of Class 150 LB (PN20), it is suitable for moderate-pressure systems. The valve has raised face (RF) ends, facilitating secure and reliable connections.

Model No.: MV-20250611-LTMSBV-08
Hits: 5
Categories: Low Torque Metal Seated Ball Valve
Tags: ASTM A182 F51 Ball Valve, 1/2 Inch Ball Valve, API 608 Ball Valve

Request a quote

Detail Information

Product Name: ASTM A182 F51 Ball Valve, 2PC
Design Standard: API 602, API 608
Body Material: ASTM A182 F51
Size: 1/2 Inch, DN15
Pressure: Class 150 LB, PN20
Operation: Lever
End Connection: RF Flanged
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect

Product Range

Body Materials: ASTM A105, A105N, ASTM A182 F304, F316, F51, A350 LF2, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-2 Inch, DN15-DN50
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: BW, Flanged (RF, RTJ)
Temperature Range: -29°C to 300°C
Medium: Water, Oil & Gas
