(API 624 Additional High Temperature Version)
Key Specifications / Features

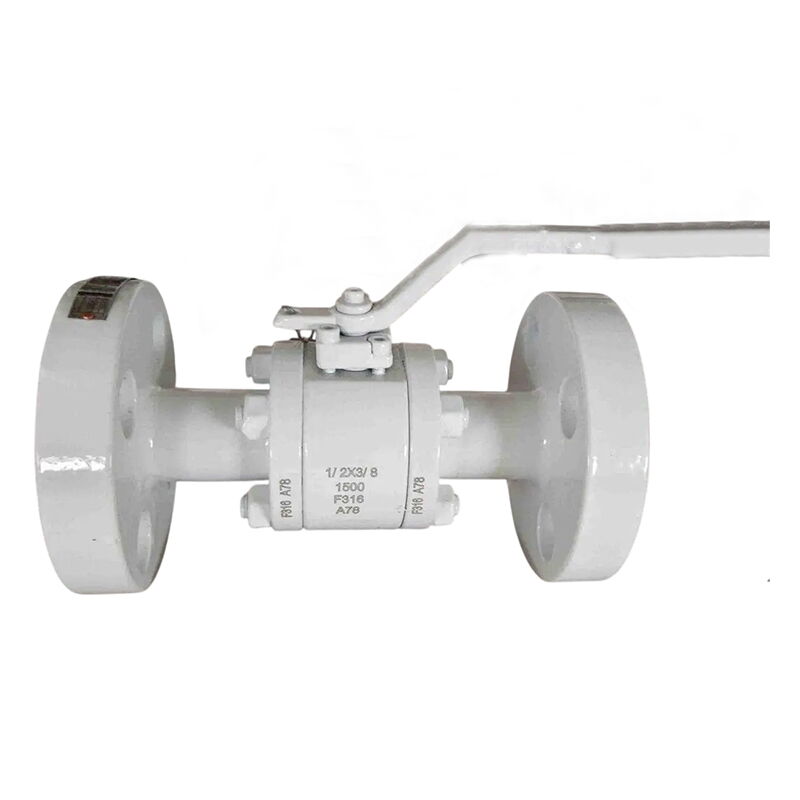

The China API 602 Ball Valve Supplier offers a high-quality, reduced bore ball valve with a low emission design, ensuring minimal environmental impact. The valve features an ASTM A182 F316 body, providing excellent corrosion resistance and durability. It has a size of 1/2 * 3/8 inch (DN15*DN10) and a Class 1500 LB (PN250) pressure rating, making it suitable for high-pressure applications. The valve is operated by a lever for easy control and has RF flanged ends for secure connections.
- Model No.: MV-20250611-LTMSBV-07
- Hits: 0
- Categories: Low Torque Metal Seated Ball Valve
- Tags: ASTM A182 F316 Ball Valve, API 602 Ball Valve, Reduced Bore Ball Valve
Detail Information
Product Name: API 602 Ball Valve, Reduced Bore
Design Standard: API 602
Body Material: ASTM A182 F316
Size: 1/2 * 3/8 Inch, DN15*DN10
Pressure: Class 1500 LB, PN250
Operation: Lever
End Connection: RF Flanged
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A105, A105N, ASTM A182 F304, F316, A350 LF2, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-2 Inch, DN15-DN50
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: BW, Flanged (RF, RTJ)
Temperature Range: -29°C to 300°C
Medium: Water, Oil & Gas
