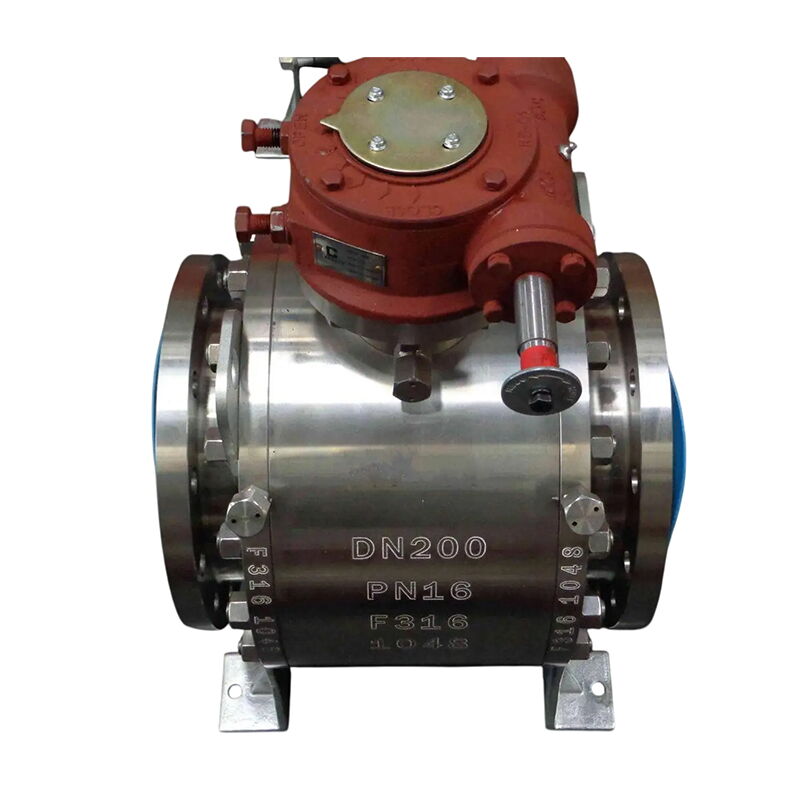

ASTM A182 F316 Ball Valve, API 6D, 3PC, DN200, PN16, 8 Inch
(API 624 Additional High Temperature Version)
Key Specifications / Features
The China ASTM A182 F316 Ball Valve Factory offers a high-performance 3-piece ball valve designed to meet the API 6D standard. This valve features a forged stainless steel body, providing excellent corrosion resistance and durability. It has a DN200 (8-inch) size with a PN16 (Class 150 LB) pressure rating, ensuring it can handle significant flow and pressure demands. The low-emission design minimizes environmental impact, while the RF flanged ends ensure secure and reliable connections.
- Model No.: MV-20250611-LTMSBV-06
- Hits: 27
- Categories: Low Torque Metal Seated Ball Valve
- Tags: 8 Inch Ball Valve, API 6D Ball Valve, ASTM A182 F316 Ball Valve
Detail Information
Product Name: ASTM A182 F316 Ball Valve, 3PC
Design Standard: API 6D
Body Material: ASTM A182 F316
Size: DN200, 8 Inch
Pressure: PN16, Class 150 LB
Operation: Gearbox
End Connection: RF Flanged
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A105, A105N, ASTM A182 F304, F316, A350 LF2, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-32 Inch, DN15-DN800
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: BW, Flanged (RF, RTJ)
Temperature Range: -29°C to 429°C
Medium: Water, Oil & Gas
