(API 624 Additional High Temperature Version)
Key Specifications / Features

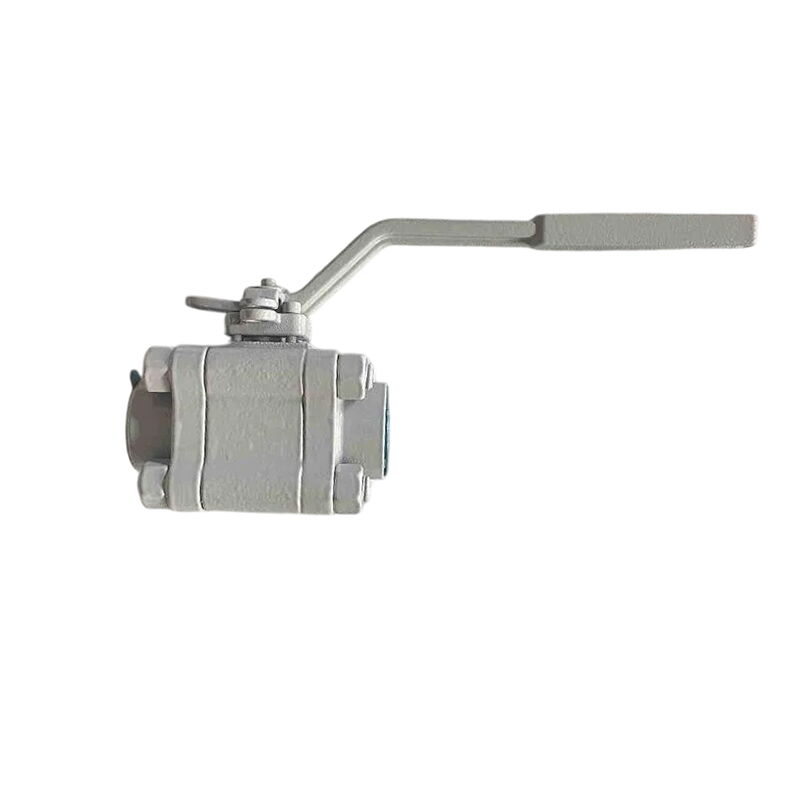

The API 602 Floating Ball Valve Plant offers high-quality ball valves that meet API 602 and API 608 standards. These valves are designed with a three-piece construction, providing durability and reliability. They feature a forged carbon steel body (ASTM A105N) and are rated for Class 800 LB pressure, ensuring they can handle demanding applications. The 1-inch diameter valves are lever operated and have socket weld ends, making them easy to install and operate.
- Model No.: MV-20250611-LTMSBV-12
- Hits: 0
- Categories: Low Torque Metal Seated Ball Valve
- Tags: ASTM A105N Ball Valve, Floating Ball Valve, API 608 Ball Valve
Detail Information
Product Name: API 602 Floating Ball Valve, 3PC
Type: Floating Ball Valve
Design Standard: API 602, API 608
Body Material: ASTM A105N
Size: 1 Inch, DN25
Pressure: Class 800 LB, PN130
Operation: Lever
End Connection: Socket Weld
Face to Face Standard: ASME B16.10, MFG
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A105, A105N, ASTM A182 F304, F316, F51, A350 LF2, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-2 Inch, DN15-DN50
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: SW, BW, Flanged, Threaded
Temperature Range: -29°C to 429°C
Medium: Water, Oil & Gas
