(API 624 Additional High Temperature Version)
Key Specifications / Features

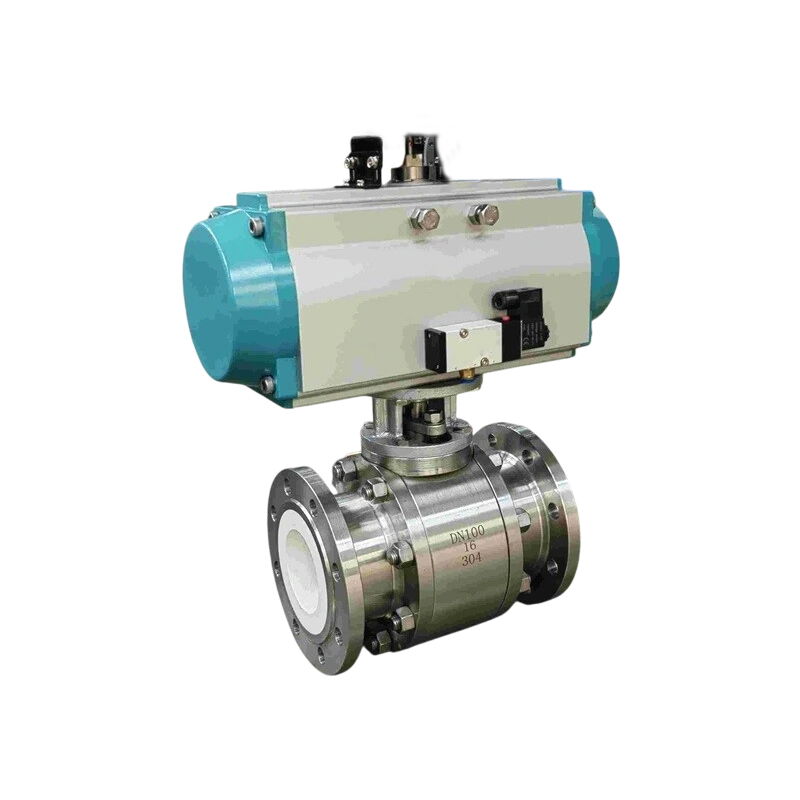

The Ceramic Ball Valve Factory in China specializes in producing high-quality ceramic ball valves that meet ASME B16.34 standards. These valves feature a stainless steel SS 304 body and are designed for a nominal diameter of DN100 (4 inches) with a pressure rating of PN16 and Class 150 LB. They are equipped with RF flanged ends for secure connections and are designed to be pneumatically actuated, ensuring efficient operation.
- Model No.: MV-20250611-LTMSBV-13
- Hits: 2
- Categories: Low Torque Metal Seated Ball Valve
- Tags: Ceramic Ball Valve, Pneumatic Actuated Ball Valve, SS 304 Ball Valve
Detail Information
Product Name: Ceramic Ball Valve
Design Standard: ASME B16.34, GB/T 12224
Body Material: Stainless Steel SS 304
Size: DN100, 4 Inch
Pressure: PN16, Class 150 LB
Operation: Pneumatic Actuated
End Connection: RF Flanged
Face to Face Standard: ASME B16.10, GB/T 12221, MFG
Test & Inspection Standard: API 598, GB/T 9092
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel
Gasket & Packing Material: Graphite/PTFE
Size Range: 2-16 Inch, DN50-DN400
Pressure Range: PN10, PN16
End Connection: SW, BW, Flanged, Threaded
Temperature Range: -29°C to 150°C
Medium: Granular Media
