(API 624 Additional High Temperature Version)
Key Specifications / Features

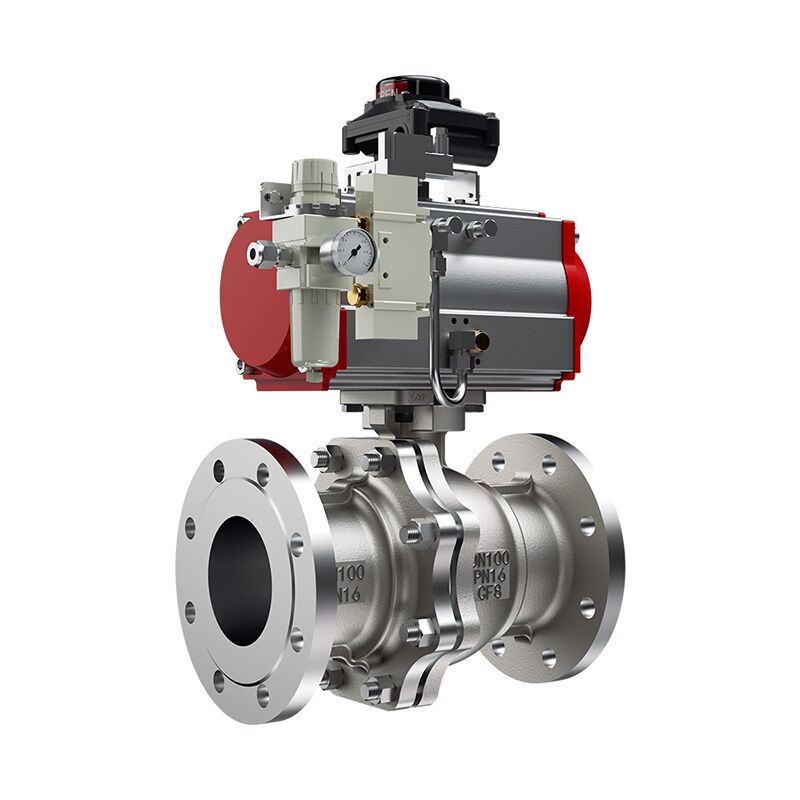

The Pneumatic Floating Ball Valve from our plant is crafted from high-grade ASTM A351 CF8 stainless steel, ensuring superior corrosion resistance and durability. This 4-inch (DN100) valve features a pressure rating of PN16 and Class 150 LB, making it suitable for demanding industrial applications. With quick open flow characteristics, it provides efficient control and smooth operation. The valve is designed for low emissions, contributing to environmental sustainability. It also features raised face (RF) flanged ends for secure and reliable connections.
- Model No.: MV-20250612-LECV-03
- Hits: 7
- Categories: Low Emission Control Valves
- Tags: Floating Ball Valve, Pneumatic Actuated Ball Valve, ASTM A351 CF8 Ball Valve
Detail Information
Product Name: Pneumatic Floating Ball Valve
Body Material: ASTM A351 CF8
Size: DN100, 4 Inch
Pressure: PN16, Class 150 LB
End: RF Flanged
Operation: Pneumatic Actuator
Flow Characteristics: Quick Open
Product Range
Valve Structure: Straight Through
Size Range: DN25-DN300 (1-12 Inch)
Pressure Range: ANSI Class 150, 300, 600 LB, PN16, PN40, PN64, 1.6 Mpa, 4.0 Mpa, 6.4 Mpa
Body Material: Carbon Steel, Stainless Steel, Alloy Steel, ASTM A216 WCB, A351 CF3/CF3M, CF8/CF8M
Packing Material: Graphite, PTFE
Pipe Line Connection: Flanged, Wafer
Flow Characteristic: Quick Open
Leakage: ANSI Class IV (Standard, Metal Seat), Class V, VI (Optional, Soft Seat)
Flow Direction: Standard
Operation: Pneumatic Actuator, Electric Actuator
