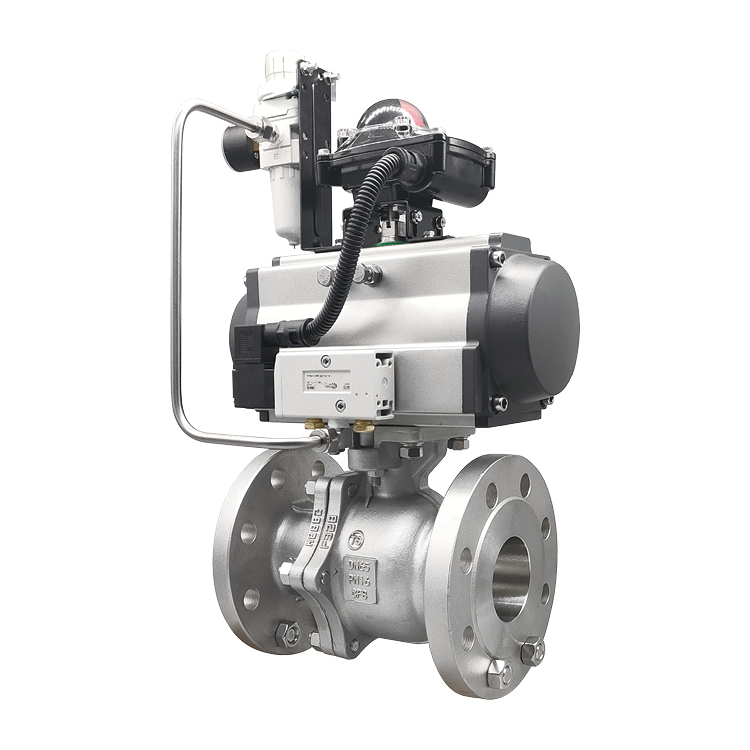

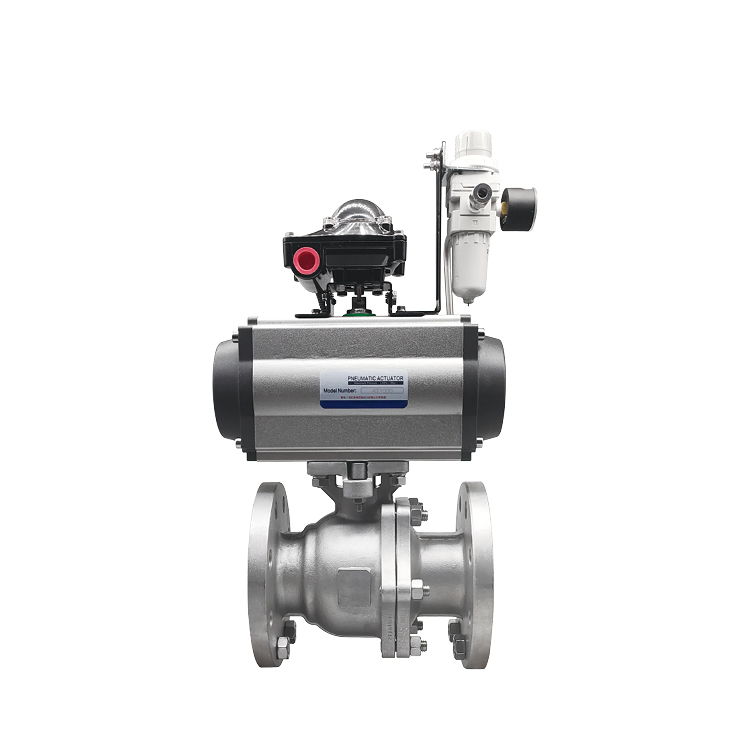

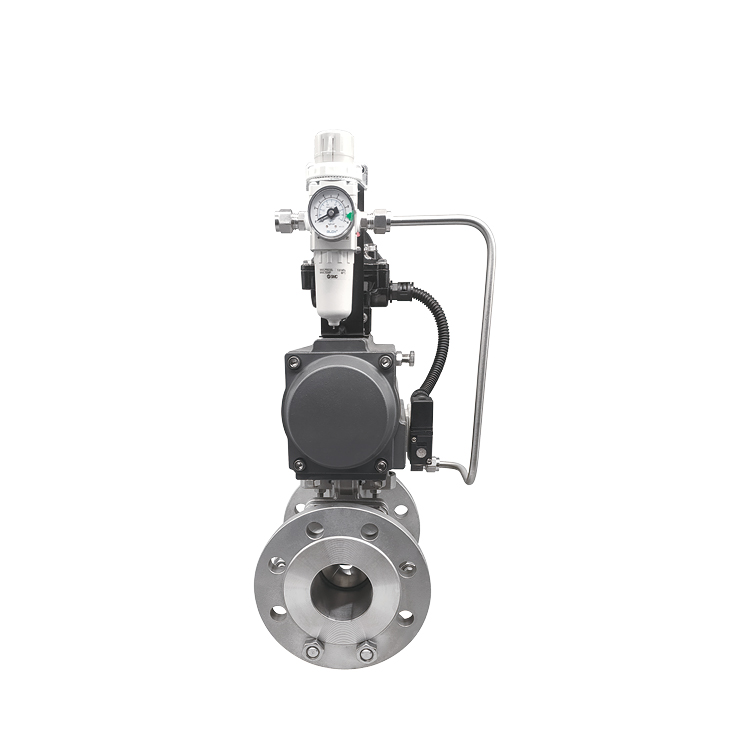

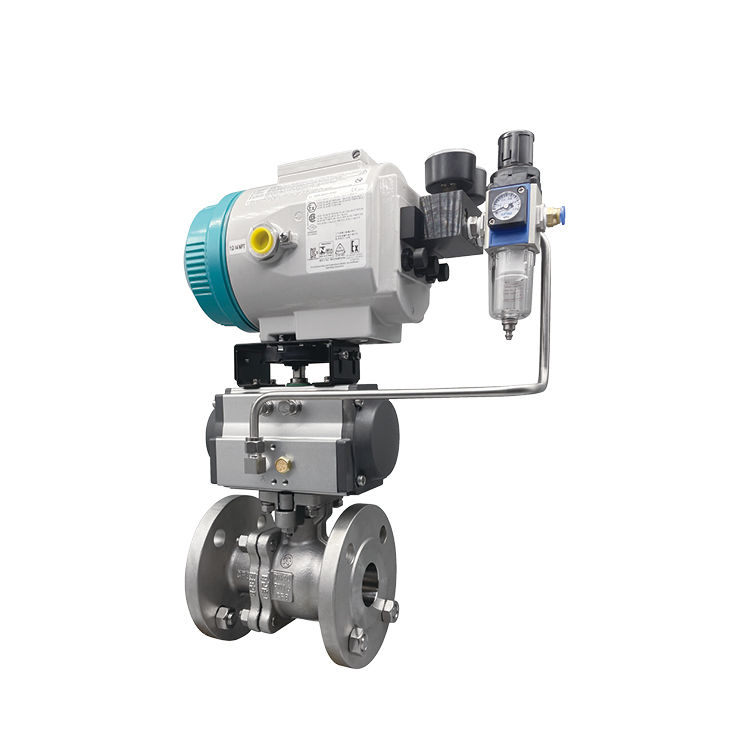

Pneumatic Actuated Ball Valve, A351 CF8, DN65, PN16, Flanged

Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

The Pneumatic Actuated Ball Valve is a high-quality valve designed for reliable industrial applications. It features a DIN 3357, ASTM A351 CF8 body, ensuring durability and corrosion resistance. The valve is equipped with graphite/PTFE packing for enhanced sealing and low emission performance. With a nominal diameter of DN65 (2-1/2 inch) and a pressure rating of PN16 (Class 150 LB), it is suitable for a wide range of flow control needs. The flanged ends facilitate easy installation and integration into existing systems.

Model no.: MV-20250529-LTMSBV-01
Hits: 1
Categories: Low Torque Metal Seated Ball Valve
Tags: ASTM A351 CF8 Ball Valve, DIN 3357 Ball Valve, Pneumatic Actuated Ball Valve

Request a quote

Detail Information

Product Name: Pneumatic Actuated Ball Valve
Design Standard: DIN 3357
Body Material: ASTM A351 CF8

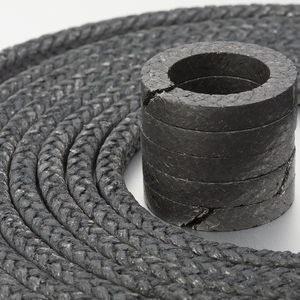

Packing Material: Graphite/PTFE
Size: DN65, 2-1/2 Inch
Pressure: PN16, Class 150 LB
End Connection: Flanged
Operation: Pneumatic Actuator
Fugitive Emission: ISO 15848-1 CC3

Product Features

Achieves ISO 15848-1 CC3 level switch life performance of 100,000 cycles
It use graphite packing and special PTFE packing, both of which can achieve ISO 15848-1 CC3 level sealing performance and have lower switch torque
Precision casting
Anti-static device
API 607 fire-resistant structure
Stem anti-explosion device
Automation device
ISO 5211 direct mounting high platform design

Technical Parameters

Nominal diameter range: Full Bore DN15-DN100, 1/2-4 Inch
Working pressure: PN16/PN40, Class 150-300 LB
Working temperature: -20°C to 180°C
Body material: ASTM A216 WCB, A351 CF8/CF8M
Actuation method: Pneumatic, Electric
Design standard: GB/T 12237, ASME B16.34, DIN 3357
Flange standard: HG/T 20592, ASME B16.5, DIN 2543–2545, EN 1092-1
Structural length: GB/T 12221, DIN 3202
Inspection & Testing: GB/T 13927, JB/T 9092, API 598, DIN 3230, EN 12266-1
Connection method: Flanged connection
Application Industries: oil, chemical, natural gas, biochemistry, pharmaceutical, environmental protection, and new energy
