(API 624 Additional High Temperature Version)
Key Specifications / Features

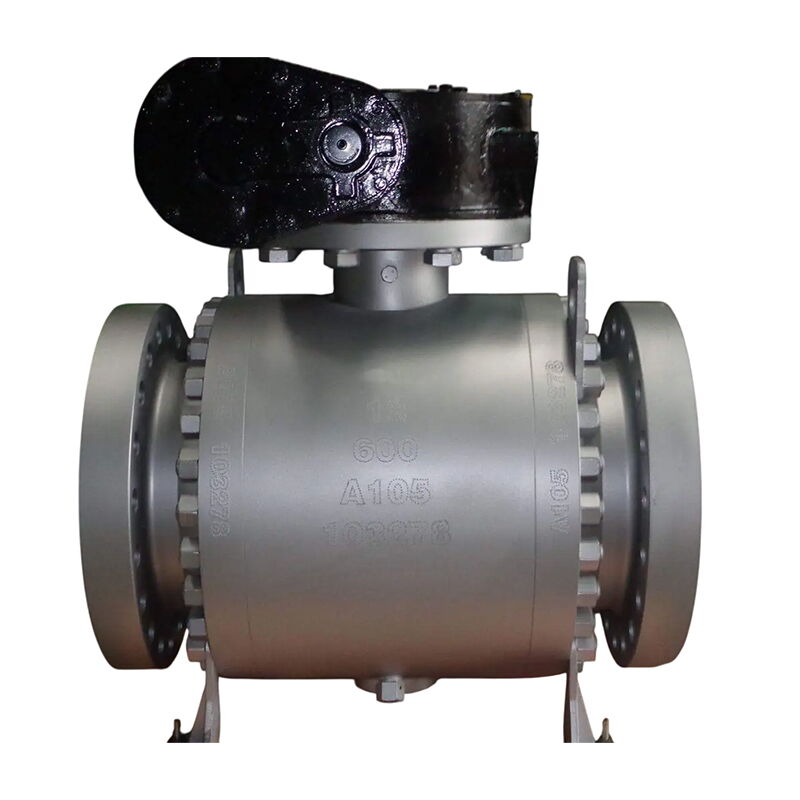

The ASTM A105 Ball Valve Plant in China specializes in manufacturing high-quality 3-piece ball valves designed for reliability and efficiency. These valves feature a forged carbon steel body, ensuring durability and strength. With a 12-inch diameter (DN300) and a pressure rating of 600 LB (PN100), they are suitable for demanding industrial applications. The valves are equipped with RF flanged ends for secure connections and are designed to meet low emission standards, making them environmentally friendly and safe for various media.
- Model No.: MV-20250611-LTMSBV-01
- Hits: 0
- Categories: Low Torque Metal Seated Ball Valve
- Tags: 12 Inch Ball Valve, 3 Piece Ball Valve, ASTM A105 Ball Valve
Detail Information
Product Name: ASTM A105 Ball Valve, 3-piece
Design Standard: API 6D
Body Material: ASTM A105
Size: 12 Inch, DN300
Pressure: Class 600 LB, PN100
Operation: Gearbox
End Connection: RF Flanged
Face to Face Standard: ASME B16.10, MFG
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A105, A105N, ASTM A182 F304/F304L, F316/F316L, F11, F22, F91, A350 LF2, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-32 Inch, DN15-DN800
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: BW, Flanged (RF, RTJ)
Temperature Range: -29°C to 429°C
Medium: Water, Oil & Gas
