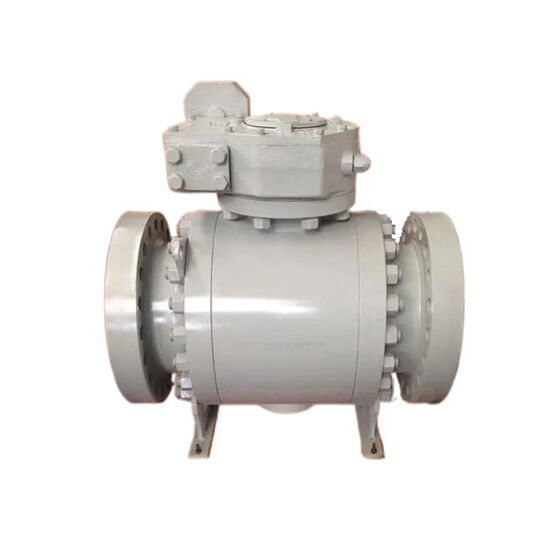

API 6D Ball Valve, ASTM A105, 10*8 Inch, CL600, Reduced Port
(API 624 Additional High Temperature Version)
Key Specifications / Features
The China Reduced Port Ball Valves Supplier offers high-quality ball valves that comply with API 6D standards. These valves feature a forged carbon steel body made from ASTM A105 material, ensuring durability and strength. With a reduced port design, their sizes feature 10 inches * 8 inches, providing efficient flow control. The valves are rated at 600 LB, making them suitable for high-pressure applications. They are equipped with a gearbox for smooth and reliable operation and feature RF flanged ends for secure connections. Additionally, these valves are designed to meet low emission requirements, making them environmentally friendly and safe for various industrial uses.
- Model No.: MV-20250611-LTMSBV-03
- Hits: 23
- Categories: Low Torque Metal Seated Ball Valve
- Tags: Reduced Port Ball Valve, ASTM A105 Ball Valve, API 6D Ball Valve
Detail Information
Product Name: API 6D Ball Valve, Reduced Port
Design Standard: API 6D
Body Material: ASTM A105
Size: 10 * 8 Inch, DN250*DN200
Pressure: Class 600 LB, PN100
Operation: Gearbox
End Connection: RF Flanged
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A105, A105N, ASTM A182 F304/F304L, F316/F316L, A350 LF2, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-32 Inch, DN15-DN800
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: BW, Flanged (RF, RTJ)
Temperature Range: -29°C to 429°C
Medium: Water, Oil & Gas
