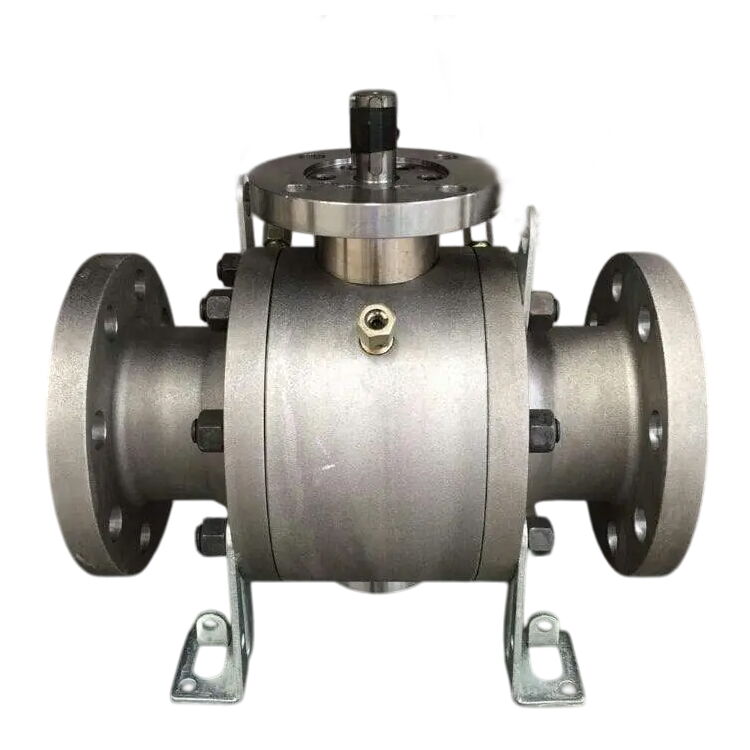

ASTM A216 WCB Ball Valve, API 6D, 3PC, 10 Inch, CL300 LB, RF
(API 624 Additional High Temperature Version)
Key Specifications / Features
The China ASTM A216 WCB Ball Valve Factory produces high-performance 3-piece ball valves that adhere to API 6D standards. These valves are designed with a 10-inch diameter (DN250) and a pressure rating of 300 LB (PN50), making them suitable for various industrial applications. Key features include low emission capabilities, a bolted bonnet for enhanced safety and reliability, and RF flanged ends for secure and easy installation.
- Model No.: MV-20250611-LTMSBV-02
- Hits: 12
- Categories: Low Torque Metal Seated Ball Valve
- Tags: ASTM A216 WCB Ball Valve, 10 Inch Ball Valve, API 6D Ball Valve
Detail Information
Product Name: ASTM A216 WCB 3-piece Ball Valve, Bolted Bonnet
Design Standard: API 6D
Body Material: ASTM A216 WCB
Size: 10 Inch, DN250
Pressure: Class 300 LB, PN50
Operation: Gearbox
End Connection: RF Flanged
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A216 WCB, A217 WC6, A351 CF8, CF3, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-32 Inch, DN15-DN800
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: BW, Flanged (RF, RTJ)
Temperature Range: -29°C to 429°C
Medium: Water, Oil & Gas
Similar Products

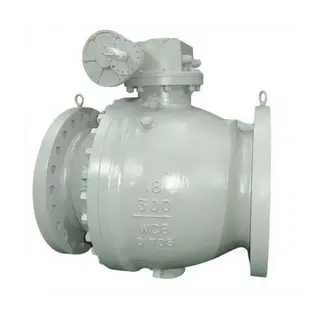

ASTM A216 WCB Ball Valves, API 6D, 2-piece, 18 Inch, 300 LB
