Key Specifications / Features
We offer premium cryogenic ball valves that adhere to BS 6364 standards. These valves feature an ASTM A351 CF8 stainless steel body, ensuring robustness and corrosion resistance. With a size of 12 inches (DN300) and a pressure rating of Class 600 LB (PN100), they are designed for low leakage, providing exceptional sealing performance. Handwheel operated for ease of use, these valves are ideal for applications requiring reliable control and minimal emissions in cryogenic conditions.
- Model no.: MV-20250402-CBAV-02
- Hits: 0
- Categories: Cryogenic Ball Valve
- Tags: BS 6364 Ball Valve, Cryogenic Ball Valve, ASTM A351 CF8 Ball Valve
Detail Information

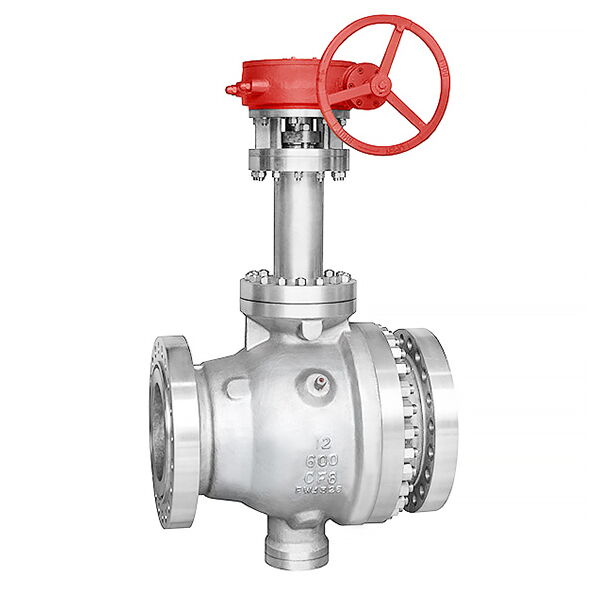

Product Name: ASTM A351 CF8 Cryogenic Ball Valve
Design Standard: BS 6364
Body Material: ASTM A351 CF8
Size: 12 Inch, DN300
Pressure: Class 600 LB, PN100
End: Flanged
Operation: Handwheel
Features: Fire Safe, Anti-Static, Anti-Blowout
Product Range
Size Range: NPS 1/2-36 Inch, DN15-DN900
Pressure Range: Class 150-2500 LB, PN20-PN420
Body Material: ASTM A352 LCB, LCC, LC1, LC2, LC3, A351 CF8, CF3, CF8M, CF3M, A350 LF2, LF3, LF5, LF9, A182 F304, F316, F304L, F316L, etc
Bonnet Type: Side Entry, Top Entry, Integral Extended Bonnet
Structure: Floating Ball, Trunnion Mounted Ball
Seat Material: PCTFE (Soft Seat), STL, HVOF Coating (Metal Seat)
Temperature: -196°C to 200°C
Applicable Standards
Design Standard: ASME B16.34, BS 6364
Inspection and Testing: API 598, BS 6364
Marking: MSS SP-25
P/T Rating: ASME B16.34
Fugitive Emission: ISO 15848
Face to Face: ASME B16.10
End to End: Manufacturer std or ASME B16.10
Socket Welding: ASME B16.11
Screwed Ends: ASME B1.20.1
Flanged: ASME B16.5
Butt Welding: ASME B16.25
