(API 624 Additional High Temperature Version)
Key Specifications / Features

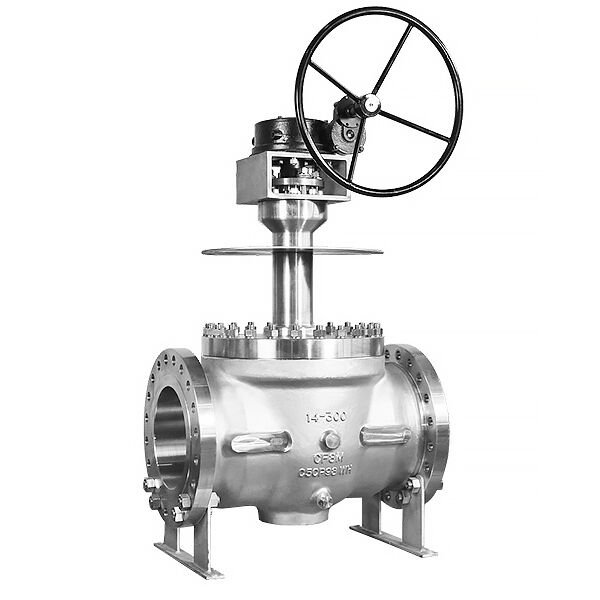

Our Low Emission Cryogenic Ball Valve Supplier offers high-quality cryogenic ball valves designed to meet BS 6364 standards. These valves are made from ASTM A351 CF8M stainless steel, ensuring excellent durability and corrosion resistance. With a size of 14 inches (DN350) and a pressure rating of Class 300 LB (PN50), they are engineered for low emission, fire safety, and anti-static performance. These features make them ideal for cryogenic applications where safety and reliability are critical.
- Model no.: MV-20250402-CBAV-01
- Hits: 0
- Categories: Cryogenic Ball Valve
- Tags: Cryogenic Ball Valve, BS 6364 Ball Valve, ASTM A351 CF8M Ball Valve
Detail Information
Product Name: BS 6364 Cryogenic Ball Valve
Design Standard: BS 6364
Body Material: ASTM A351 CF8M
Size: 14 Inch, DN350
Pressure: Class 300 LB, PN50
End: Flanged
Operation: Handwheel
Features: Fire Safe, Anti-Static, Anti-Blowout
Size Range: NPS 1/2-36 Inch, DN15-DN900
Pressure Range: Class 150-2500 LB, PN20-PN420
Body Material: ASTM A352 LCB, LCC, LC1, LC2, LC3, A351 CF8, CF3, CF8M, CF3M, A350 LF2, LF3, LF5, LF9, A182 F304, F316, F304L, F316L, etc
Bonnet Type: Side Entry, Top Entry, Integral Extended Bonnet
Structure: Floating Ball, Trunnion Mounted Ball
Seat Material: PCTFE (Soft Seat), STL, HVOF Coating (Metal Seat)
Temperature: -196°C to 200°C
Applicable Standards
Design Standard: ASME B16.34, BS 6364
Inspection and Testing: API 598, BS 6364
Marking: MSS SP-25
P/T Rating: ASME B16.34
Fugitive Emission: ISO 15848
Face to Face: ASME B16.10
End to End: Manufacturer std or ASME B16.10
Socket Welding: ASME B16.11
Screwed Ends: ASME B1.20.1
Flanged: ASME B16.5
Butt Welding: ASME B16.25
