(API 624 Additional High Temperature Version)
Key Specifications / Features

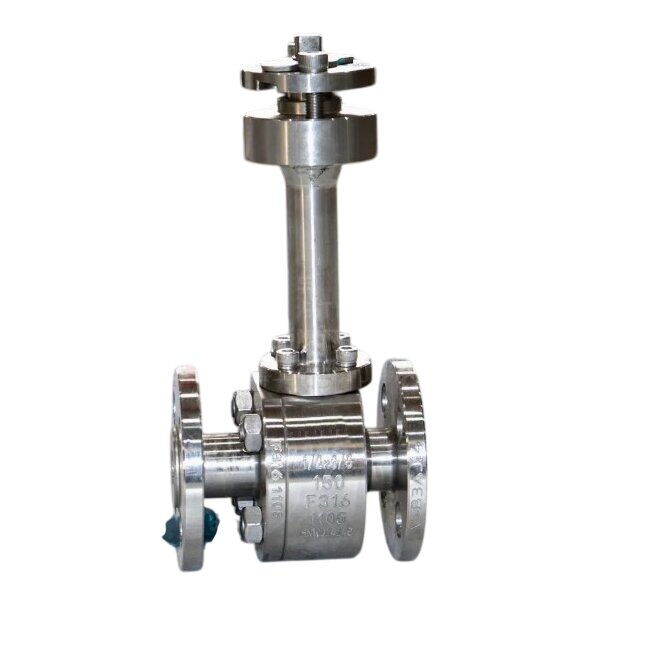

The Cryogenic Floating Ball Valve Plant manufactures precision valves compliant with BS 6364, featuring an ASTM A182 F316 stainless steel body. Sized 1/2" × 3/8" (DN15 × DN10) with a reduced port design, these valves are rated for Class 150 LB / PN20. Engineered for cryogenic applications, they ensure low leakage performance, reliable sealing, and safe operation in extremely low-temperature environments.
- Model no.: MV-20250411-CBAV-01
- Hits: 0
- Categories: Cryogenic Ball Valve
- Tags: ASTM A182 F316 Ball Valve, Cryogenic Ball Valve, Floating Ball Valve
Detail Information
Product Name: Cryogenic Floating Ball Valve
Type: Floating Ball Valve
Design Standard: BS 6364
Body Material: ASTM A182 F316
Size: 1/2 * 3/8 Inch, DN15*DN10, Reduced Port
Pressure: Class 150 LB, PN20
End: Flanged
Features: Fire Safe, Anti-Static, Anti-Blowout
Size Range: NPS 1/2-36 Inch, DN15-DN900
Pressure Range: Class 150-2500 LB, PN20-PN420
Body Material: ASTM A350 LF2, LF3, LF5, LF9, A182 F304, F316, F304L, F316L, etc
Bonnet Type: Side Entry, Top Entry, Integral Extended Bonnet
Structure: Floating Ball, Trunnion Mounted Ball
Seat Material: PCTFE (Soft Seat), STL, HVOF Coating (Metal Seat)
Temperature: -196°C to 200°C
Applicable Standards
Design Standard: ASME B16.34, BS 6364
Inspection and Testing: API 598, BS 6364
Marking: MSS SP-25
P/T Rating: ASME B16.34
Fugitive Emission: ISO 15848
Face to Face: ASME B16.10
End to End: Manufacturer std or ASME B16.10
Socket Welding: ASME B16.11
Screwed Ends: ASME B1.20.1
Flanged: ASME B16.5
Butt Welding: ASME B16.25
