Key Specifications / Features

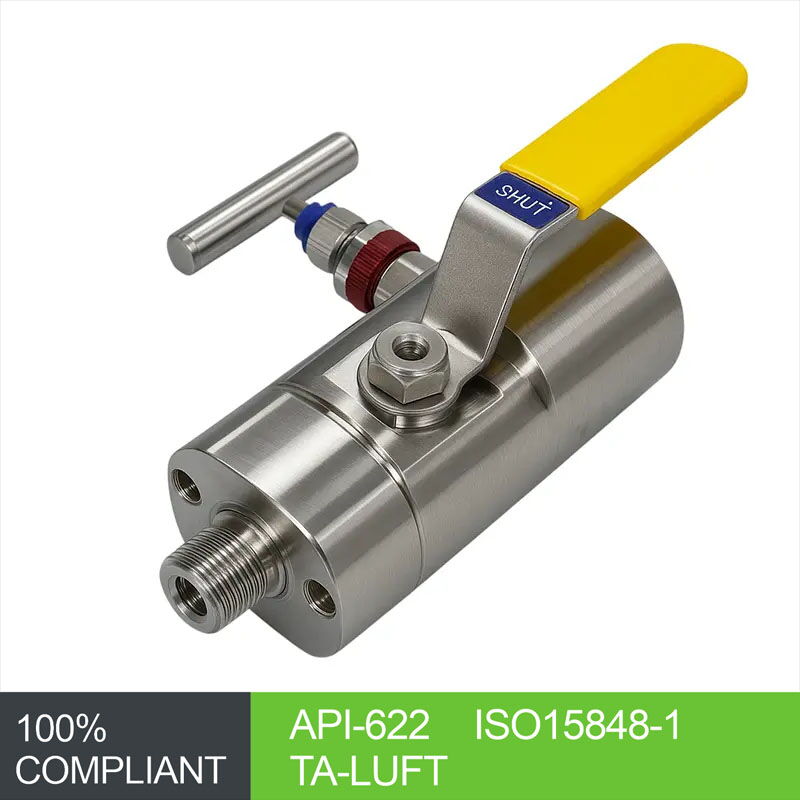

This gauge root valve features a one-piece double block and bleed design, providing safe and compact isolation for pressure instruments. Available in stainless steel, carbon steel, and duplex steel, it supports sizes from 1/2 to 2 inches and pressure classes ranging from 150 to 2500 LB. Designed for durability and precision, it is ideal for use in oil, gas, and petrochemical industries where reliable pressure monitoring and minimal leakage are critical.
- Model no.: MV-20250421-BBV-03
- Hits: 1
- Categories: Low Torque Metal Seated Ball Valve
- Tags: Gauge Root Valve, Stainless Steel Root Valve, Carbon Steel Root Valve
Detail Information

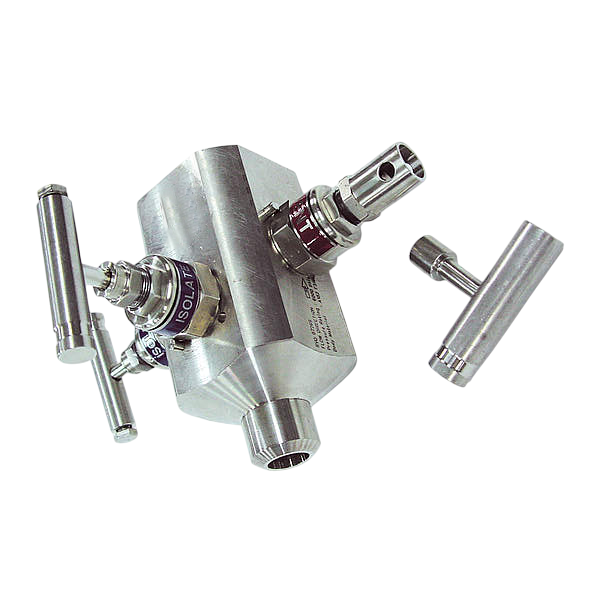

Root valves are integrally forged, one-piece double block and bleed assemblies, designed for primary isolation of pressure take-offs. These valves are directly mounted to vessels or process pipes, providing a reliable means of isolating pressure systems. Instruments can be mounted directly to the valve outlet or remotely using gauge lines or impulse piping.
Product Name: Gauge Root Valve
Standard Materials: Stainless Steel, Carbon Steel, Duplex Steel
Size Range: 1/2-2 Inch
Pressure Range: Class 150-2500 LB
Inlet Connections: Welded inlet connections
Outlet Connection: 1/2 Inch NPT threaded female outlet, conforming to ANSI/ASME B1.20.1.
Vent Connection: 1/2 Inch NPT threaded female vent connection to ANSI/ASME B1.20.1.
Applications: Isolation, Block and Bleed, Double Block and Bleed, Pressure Measurement, Flow Measurement
Key Features:
Material Thickness: Conforms to ANSI B16.34.
Fire Safety: Firesafe to API 607, BS 6755 Part 2.
Pressure Testing: Standard pressure testing according to BS 6755 Part 1.
Material Traceability: Heat code traceable to EN 10204 3.1 (body only).
Ball Isolation Valve Seat Material: Options include PVDF, PTFE (virgin or filled), PCTFE, and PEEK.
Valve Packing Materials: OS&Y needle-type and needle-type globe valve packing materials come standard with graphite, with PTFE available as an option.
Options:
Options for root valves are similar to those available for the Modular and Monoflange ranges.
