(API 624 Additional High Temperature Version)
Key Specifications / Features

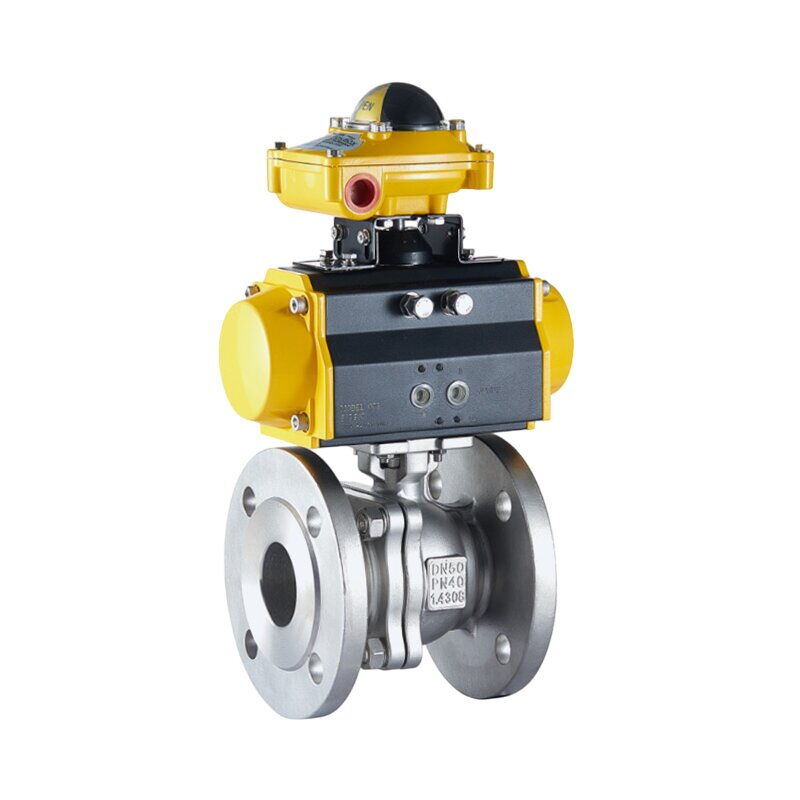

This DIN 3357-compliant ball valve features a two-piece stainless steel body made from EN 1.4306 for excellent corrosion resistance and durability. Sized at 2 inches (DN50), it’s rated for PN40 / Class 300 LB pressure applications. The valve is pneumatic actuated for efficient automated control and designed with low emission performance, making it ideal for demanding industrial systems that require reliability, precision, and environmental safety.
- Model no.: MV-20250407-LTMSBV-04
- Hits: 0
- Categories: Low Torque Metal Seated Ball Valve
- Tags: Pneumatic Actuated Ball Valve, EN 1.4306 Ball Valve, DIN 3357 Ball Valve
Detail Information
Product Name: Pneumatic Actuated Ball Valve, 2 Piece
Design Standard: DIN 3357
Body Material: EN 1.4306
Size: DN50, 2 Inch
Pressure: PN40, Class 300 LB
End: Flanged
Operation: Pneumatic Actuator
Key Features
Locking Device Handle
Anti-static Device
Blow-out Proof Stem
Automation Accessories Compatible
ISO 5211 Direct Mounting Pad
Product Range
Nominal Diameter: Full Port, DN15-DN150
Working Pressure: PN16/PN40, Class 150 LB, JIS 10K
Working Temperature: -20°C to 180°C
Body Material: ASTM A216 WCB, A351 CF8, CF8M, EN 1.4306
Actuator Options: Pneumatic Actuator, Electric Actuator
Connection Type: Flanged End
Applications: Suitable for petroleum, chemical, natural gas, biochemical, pharmaceutical, environmental protection, and new energy industries
Standards
Design: DIN 3357, EN 12516-1
Flange Dimensions: DIN 2543–2545, EN 1092-1 PN16/PN40
Face-to-Face: DIN 3202 Part 1-F4 (DN15–DN100), DIN 3202 Part 1-F5 (DN125–DN300)
Inspection & Testing: DIN 3230, EN 12266-1
