(API 624 Additional High Temperature Version)
Key Specifications / Features

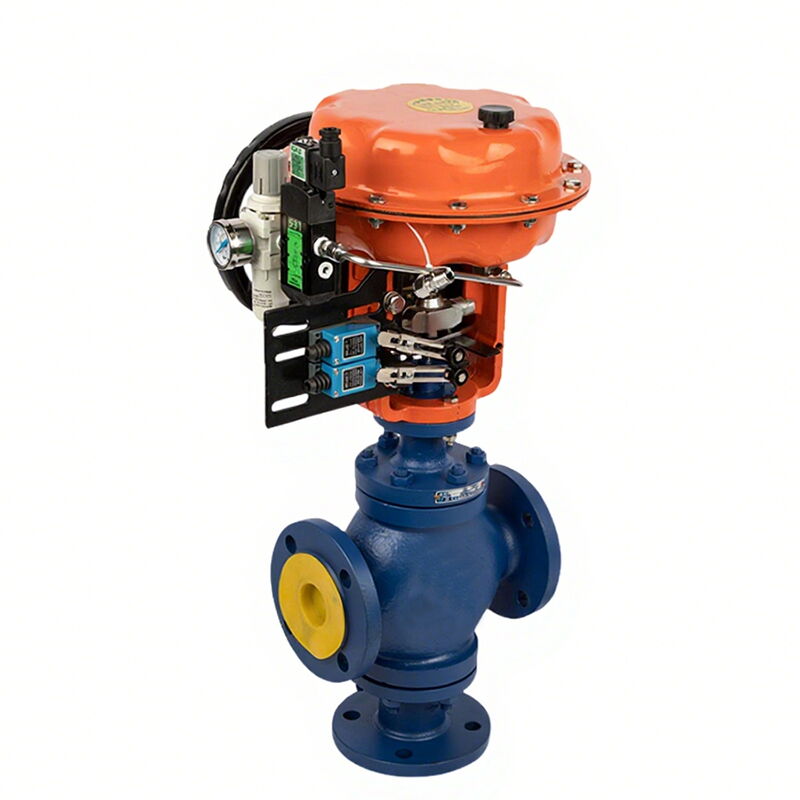

The ASTM A216 WCB 3-Way Control Valve is a high-quality carbon steel control valve designed for industrial applications. It features a 2-inch (DN50) body with a pressure rating of PN16 and Class 150 LB, ensuring durability and reliability. Equipped with a pneumatic actuator, this valve offers precise control and low emission performance, making it environmentally friendly. The valve has raised face (RF) flanged ends for secure connections. Manufactured with a carbon steel body, it provides robustness and resistance to harsh operating conditions.
- Model No.: MV-20250612-LECV-01
- Hits: 2
- Categories: Low Emission Control Valves
- Tags: Pneumatic Control Valve, 3-Way Control Valve, ASTM A216 WCB Control Valve
Detail Information
Product Name: Pneumatic 3-Way Control Valve (Diverting or Converging Type)
Body Material: ASTM A216 WCB
Size: DN50, 2 Inch
Pressure: PN16, Class 150 LB
End: RF Flanged
Operation: Pneumatic Actuator
Flow Characteristics: Linear
Rangeability: 30:1
Product Range
Size Range: DN25-DN300 (1-12 Inch)
Pressure Rating: Class 125-400 LB (PN16, PN40, PN64)
Body Material: Carbon Steel, Stainless Steel, Alloy Steel, ASTM A216 WCB, A351 CF3/CF3M, CF8/CF8M, ASTM A105, A182 F304, F316
Packing Material: Graphite, PTFE
Temperature Range: -20°C to 315°C
Seat Leakage: ANSI B16.104 Class II (Soft Seat) or Class VI (Metal Seat)
Bonnet Type: Standard, Extension, Long-Extension, Bellows, Steam Jacket
Operation: Pneumatic Actuator, Electric Actuator
End Connections: RF, FF, RTJ, SW, BW
