(API 624 Additional High Temperature Version)
Key Specifications / Features

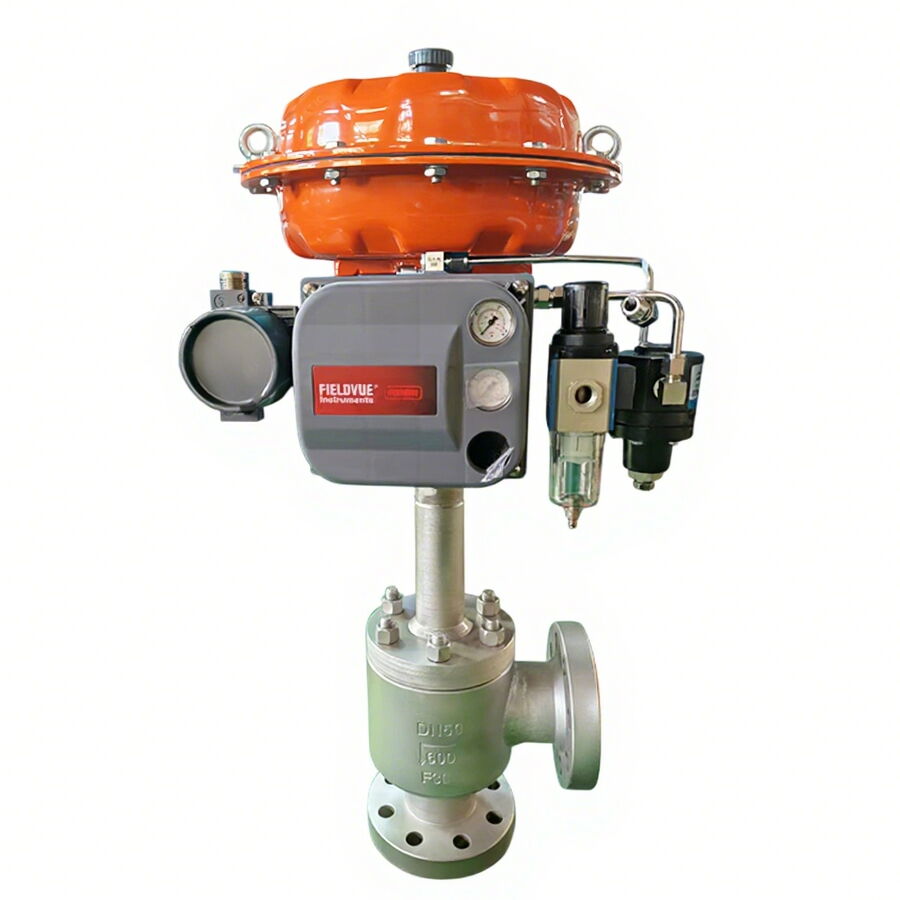

The Pneumatic Angle Control Valve Supplier offers high-performance valves designed to meet stringent industry standards. These valves feature a low-emission design and are constructed with an ASTM A182 F304 stainless steel body, ensuring durability and corrosion resistance. With a diameter of DN50 (2 inches) and a pressure rating of Class 600 LB (PN100), they are suitable for demanding applications requiring high pressure and flow control. The top-guided, single-seated design provides precise control and reliability.
- Model No.: MV-20250612-LECV-01
- Hits: 3
- Categories: Low Emission Control Valves
- Tags: ASTM A182 F304 Control Valve, Pneumatic Control Valve, Angle Control Valve
Detail Information
Product Name: Pneumatic Angle Control Valve
Main Features: Top Guided, Single Seated
Body Material: ASTM A182 F304
Size: DN50, 2 Inch
Pressure: Class 600 LB, PN100
End: RF Flanged
Operation: Pneumatic Diaphragm Actuator
Rangeability: 50:1
Product Range
Size Range: DN40, DN50, DN65, DN80, DN100, DN150, DN200 (1-1/2 Inch, 2 Inch, 2-1/2 Inch, 3 Inch, 4 Inch, 6 Inch, 8 Inch)
Pressure Rating: Class 125 LB, 150 LB, 300 LB, 400 LB, 600 LB (PN16, PN20, PN50, PN64, PN100)
Body Material: Carbon, Stainless, Alloy Steel, ASTM A216 WCB, A351 CF3/CF3M, CF8/CF8M, ASTM A105, A182 F304, F316
Packing Material: Graphite, PTFE
Temperature Range: -196°C to 566°C
Seat Leakage: ANSI B16.104 Class II (Soft Seat) or Class VI (Metal Seat)
Bonnet Type: Standard, Extension, Long-Extension, Bellows, Steam Jacket
Operation: Pneumatic Actuator, Electric Actuator
End Connections: RF, FF, RTJ, SW, BW
