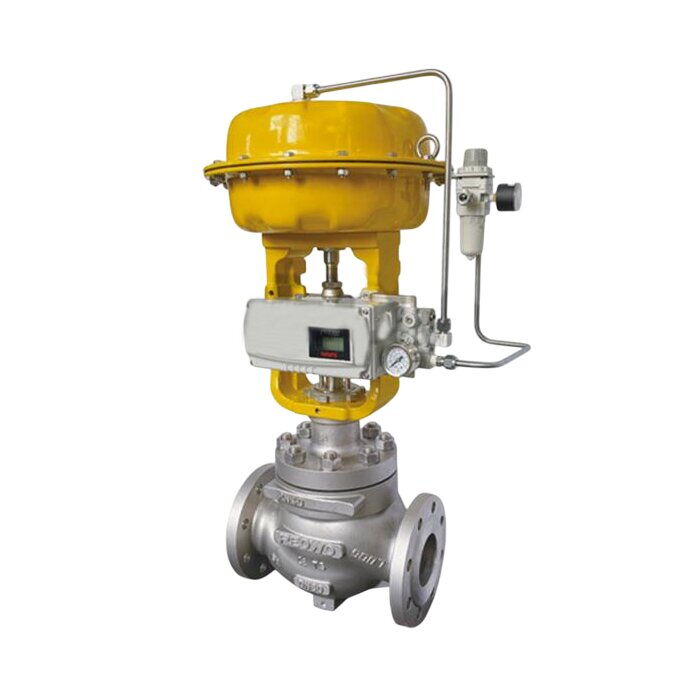

Cage Guided Control Valve, CS, SS, AS, 1.5-24 IN, Single Seat

Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

Our Cage Guided Control Valve Supplier offers high-performance control valves designed for low emission and single-seated operation. These valves are available in carbon steel, stainless steel, and alloy steel, ensuring robustness and corrosion resistance. With sizes ranging from 1-1/2 to 24 inches and pressure ratings from Class 150 to 600 LB, they are suitable for a wide range of industrial applications. Pneumatically actuated, these valves are ideal for systems requiring minimal leakage and efficient operation.

Model No.: MV-20250402-LECV-02
Hits: 6
Categories: Low Emission Control Valves
Tags: Pneumatic Control Valve, Cage Guided Control Valve, Single Seated Control Valve

Request a quote

Detail Information

Product Name: Cage Guided Single Seated Control Valve
Size Range: 1-1/2 Inch - 24 Inch (DN40-DN600)
Pressure Rating: Class 150-600 LB, PN16-PN100
Body Material Options: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel
Temperature Range: -196°C to 230°C
Seat Leakage Class: ANSI Class IV (≤0.01%), ANSI Class VI (Bubble-Tight)
Bonnet Types: Standard, Long-Extension, Bellows, Steam Jacket
Application: Suitable for high-pressure differential applications, providing stability, reduced vibration, and minimal mechanical noise. Ideal for harsh working conditions requiring precise flow control with minimal operating force.

Performance & Features

Trim Structure: Cage-Guided, Pressure-Balanced Spool
Stability: Solid cage guide and balanced sealing ring for enhanced vertical movement control
Noise Reduction: Reduced vibration and mechanical noise
Operation: Small force required for stable adjustment due to fluid pressure balance on the spool
