(API 624 Additional High Temperature Version)
Key Specifications / Features

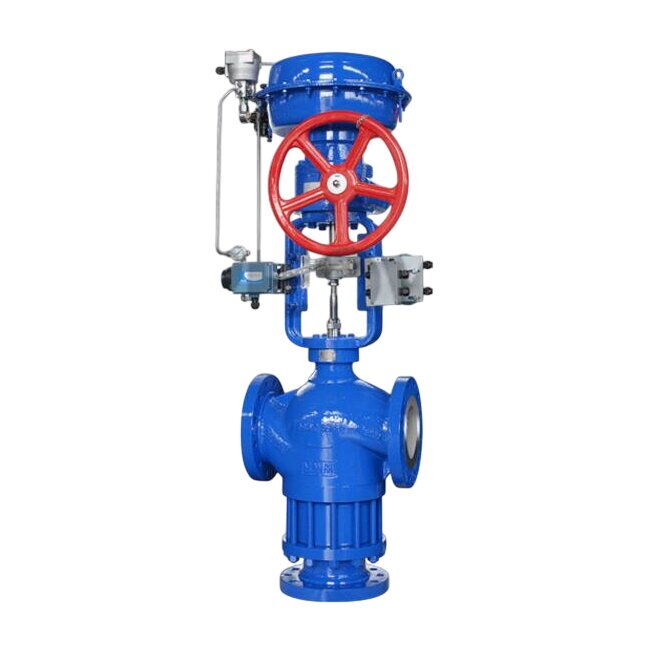

The Pneumatic 3-Way Control Valve is designed for versatile flow control, available in diverting or converging types to meet various industrial needs. It comes in sizes ranging from 1 to 20 inches and pressure classes from 150 to 600 LB. Constructed from carbon steel, stainless steel, or alloy steel, this valve ensures durability and resistance to corrosion. With low leakage performance, it offers reliable and precise flow regulation.
- Model no.: MV-20250409-LECV-01
- Hits: 0
- Categories: Low Emission Control Valves
- Tags: Pneumatic Control Valve, 3-Way Control Valve, Carbon Steel Control Valve
Detail Information
Product Name: 3-Way Diverting or Converging Control Valve
Size Range: 1-20 Inch (DN25-DN500)
Pressure Rating: Class 150-600 LB (PN16-PN100)
Body Material: Carbon, Stainless, Alloy, Duplex Steel, ASTM A216 WCB, A351 CF3/CF3M, CF8/CF8M
Temperature Range: -196°C to 540°C
Seat Leakage: ANSI IV or ANSI VI (Bubble-tight)
Bonnet Type: Standard, Extension, Long-Extension, Bellows, Steam Jacket
Operation: Pneumatic Actuator
Features
Top-Guided Trim: Ensures smooth operation and durability.
Diverging Type: Divides one-way fluid into two directions for adjustment.
Converging Type: Combines two-way fluid into one direction for control.
High-Pressure Differential Capability: Ideal for applications with significant pressure differences.
Suitable for Gas or Liquid: Can handle fluids without solid particles.
Versatile Application: Effective for both diverging and converging control in various systems.
